Details
Details

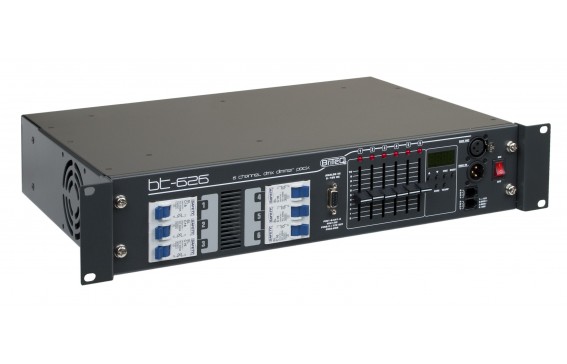

- Professional 6 channel Dimmer / Switch pack for 19" rack mounting
- Max load 16A (3680W) per channel with automatic 16A circuit breakers
- Suitable for both inductive and resistive loads
- Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).
- Outputs equipped with German mains sockets (see barcode sticker)
- DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
- Block or individual channel addressing (soft patch)
- Switch/dimmer mode can be set individually for all channels
- Control faders 0-100% for all channels (no external controller needed)
- Preheat control to extend lamp life: 0-6%
- Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
- LED display for monitoring of all functions, including internal temperature.
- Mains input (200 ~ 240Vac):
- 3-phase/4wire: total max. load = 22kW
- Single phase/2wire: total max. load = 9,6kW
- Intelligent thermo protection with automatic fan control.
- Dimensions: 483x88x312mm (19"/2U)
- Weight: 8kg
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.3 x 8.8 x 31.2 cm |
|---|---|
| General : Weight (kg) | 8.5 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | 19" rack mountable |
| General : RU | No |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone automatic, DMX |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 6 |
| Connections : input | 3 pin XLR |
| Connections : output | 3 pin XLR, Schuko CEE 7/7 |
| Brand | BRITEQ |
| EANCode | 5420025646352 |
