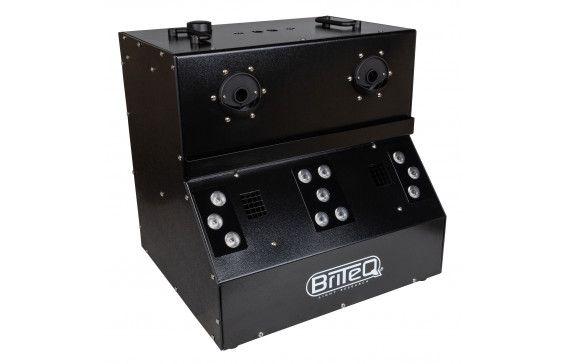

- Powerful bubble and fog machine combination with 11 pcs of 8Watt-RGBA LED’s.
- Each effect can be used individually or combined to produce bubbles filled with fog.
- Equipped with a double fan to blow the bubbles and/or smoke meters away.
- Controllable via:
- 4 or 11 DMX channels
- Wireless remote control (included)
- Build-in timer
- Manual activation
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
- Uses regular water based Bubble Liquid and Fog Liquid.
- Optional omega clamp = Briteq Omega Bracket Small
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 46 x 40 x 45 |
|---|---|
| General : Weight (kg) | 16 |
| General : Powerinput | AC 230V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 850 |
| General : Color | black |
| General : Display | OLED |
| General : IP rating | indoor |
| Control : Modes | standalone timer, manual, DMX |
| Control : Type included remote | Wireless RF |
| Control : minimum DMX channels | 4 |
| Control : maximum DMX channels | 11 |
| Fx : liquid type | Bubble |
| Fx : output cu.ft. / min. | 4500 |
| Fx : tank capacity in L | 2.5L Fog & 5L Bubble Fluid |
| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025647519 |
Manual & Downloads
Manual & Downloads
 BT-BUBBLEFOG - Manual EN Size: (4.33 MB) |
BT-BUBBLEFOG - User Manual English |
| BT-BUBBLEFOG - Manual NL Size: (2.55 MB) |
BT-BUBBLEFOG - Handleiding Nederlands |
| BT-BUBBLEFOG - Manual FR Size: (2.55 MB) |
BT-BUBBLEFOG - Mode d'emploi Français |
| BT-BUBBLEFOG - Manual DE Size: (2.55 MB) |
BT-BUBBLEFOG - Bedienungsanleitung Deutsch |
| BT-BUBBLEFOG - Manual ES Size: (2.55 MB) |
BT-BUBBLEFOG - Manual de instrucciones Español |
 BT-BUBBLEFOG - Chromateq profiles Size: (2.12 KB) |
BT-BUBBLEFOG - Chromateq profiles |
 Fixture files - GDTF - BT-BUBBLEFOG |
|
| Fixture files - CHAMSYS |
| BT-BUBBLEFOG PDF leaflet Deutsch Size: (1.45 MB) |
PDF_LEAFLET_BT-BUBBLEFOG_B04751_de.pdf |
| BT-BUBBLEFOG PDF leaflet English Size: (1.45 MB) |
PDF_LEAFLET_BT-BUBBLEFOG_B04751_en.pdf |
| BT-BUBBLEFOG PDF leaflet Français Size: (1.45 MB) |
PDF_LEAFLET_BT-BUBBLEFOG_B04751_fr.pdf |
| BT-BUBBLEFOG PDF leaflet Nederlands Size: (1.45 MB) |
PDF_LEAFLET_BT-BUBBLEFOG_B04751_nl.pdf |
