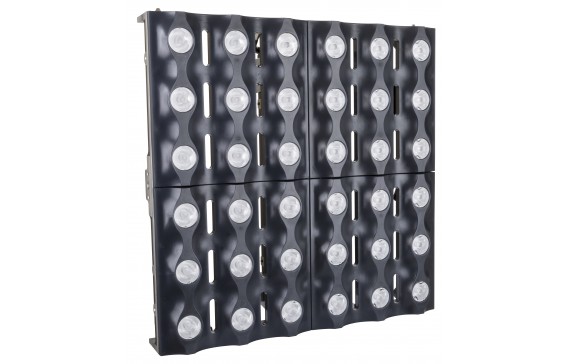

- The unit is equipped with 36 extremely effective 3W white CREE leds with very narrow 4° lenses, in combination with amazing RGB glow effects!
- This results in an exceptionally powerful “narrow beam” 6x6 Matrix effect projector that turns even the biggest concerts and TV shows into an amazing spectacle! Light engineers will be amazed by the endless possibilities and ease of use to create astonishing light shows!
- A vast internal effects library, containing letters, numbers, chases!
- 5 different DMX channel modes for different applications:
- 4CH: pixel programs + RGB panel dimming
- 7CH: pixel dimming + strobe + programs/letters/numbers + RGB panel dimming
- 13CH: pixel dimming + strobe + programs/letters/numbers + speed + RGB panel dimming
- 43CH: individual pixel dimming + programs/letters/numbers + individual panel RGB dimming
- 48CH: individual pixel dimming + pixel master dimming + strobe + programs + speed + individual panel RGB dimming
- Excellent built-in programs for wonderful, ever changing, light shows.
- Silent operation, thanks to natural convection.
- The internal shows work in standalone, master/slave or can be selected by DMX: static colors, fading colors, different static chases, different sound activated chases.
- Backlit alphanumeric 2x 8 character LCD-display for easy menu navigation
- ProCON in/outputs: easy daisy chaining of several units.
- 3pin XLR DMX in/outputs
- Rugged metal construction, equipped with “quick lock” mechanisms to build large matrix arrays in no time.
- Optionally a hanging bracket is available for truss mounting of larger arrays (order code: 4426)
- High efficiency and low power consumption!
- Also available with white front
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 50 x 50 x 8.4 cm |
|---|---|
| General : Weight (kg) | 11 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 190 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | M8 |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, RGB |
| Light : mix colors | Yes |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, PowerCon® or compatible |
| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | BRITEQ |
| EANCode | 5420025655033 |
Manual & Downloads
Manual & Downloads
 BT-GLOWPANEL - Manual English Size: (2.92 MB) |
BT-GLOWPANEL - Manual English |
| BT-GLOWPANEL - Manual Deutsch Size: (2.97 MB) |
BT-GLOWPANEL - Manual Deutsch |
| BT-GLOWPANEL - Manual Français Size: (3.08 MB) |
BT-GLOWPANEL - Manual Français |
| BT-GLOWPANEL - Manual Nederlands Size: (2.97 MB) |
BT-GLOWPANEL - Manual Nederlands |
| BT-GLOWPANEL - Manual Español Size: (2.97 MB) |
BT-GLOWPANEL - Manual Español |
| BT-GLOWPANEL - EC Declaration Size: (835.42 KB) |
BT-GLOWPANEL - EC Declaration of Conformity |
 BT-GLOWPANEL - Firmware v1.1 Size: (614.66 KB) |
BT-GLOWPANEL - Firmware v1.1 - 2017-12-27 |
| BT-GLOWPANEL_BL PDF leaflet Deutsch Size: (1.48 MB) |
PDF_LEAFLET_BT-GLOWPANEL_BL_05503_de.pdf |
| BT-GLOWPANEL_BL PDF leaflet English Size: (1.48 MB) |
PDF_LEAFLET_BT-GLOWPANEL_BL_05503_en.pdf |
| BT-GLOWPANEL_BL PDF leaflet Français Size: (1.48 MB) |
PDF_LEAFLET_BT-GLOWPANEL_BL_05503_fr.pdf |
| BT-GLOWPANEL_BL PDF leaflet Nederlands Size: (1.48 MB) |
PDF_LEAFLET_BT-GLOWPANEL_BL_05503_nl.pdf |
