Details
Details

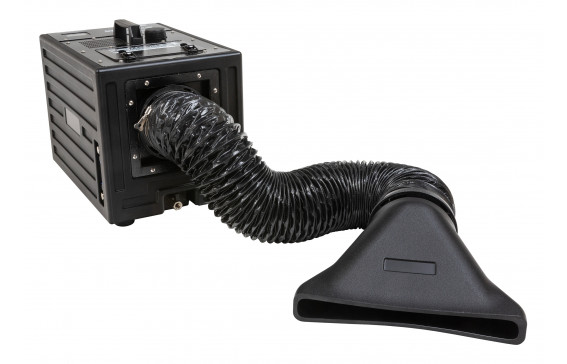

- Ultrasonic 1250W Low Fog machine.
- The powerful ultrasonic element converts the combination of smoke fluid and water into a large amount of beautiful low-lying fog.
- No more hassle with expensive and hard to find CO2 dry ice !
- Recommended fog fluid for best results: BT-FOGLIQ5 LOW2
- The 3m long black hose (D: 125mm) is equipped with a “fast click-on" system to significantly reduce installation time!
- Adjustable fog output and fan speed:
- Via 2 DMX channels
- Via the on board control panel with LCD-display and timer
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
- Wireless RF remote included.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 47 x 31 x 40 (L x W x H) |
|---|---|
| General : Weight (kg) | 15.6 |
| General : Powerinput | AC 230V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 1250 |
| General : Color | black |
| General : Display | LCD |
| General : IP rating | indoor |
| Control : Modes | standalone timer, remote, DMX |
| Control : Type included remote | Wireless Remote Controller |
| Control : minimum DMX channels | 2 |
| Control : maximum DMX channels | 2 |
| Fx : liquid type | Smoke |
| Fx : tank capacity in L | 1.8L Low Fog Fluid + 7.5L Water |
| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025647526 |
Manual & Downloads
Manual & Downloads
 BT-H2FOG COMPACT 2 - Manual EN Size: (2.06 MB) |
BT-H2FOG COMPACT 2 - Manual English |
| BT-H2FOG COMPACT 2 - Manual FR Size: (2.06 MB) |
BT-H2FOG COMPACT 2 - Manual Français |
| BT-H2FOG COMPACT 2 - Manual NL Size: (2.04 MB) |
BT-H2FOG COMPACT 2 - Manual Nederlands |
| BT-H2FOG COMPACT 2 - Manual DE Size: (2.06 MB) |
BT-H2FOG COMPACT 2 - Manual Deutsch |
| BT-H2FOG COMPACT 2 - Manual ES Size: (2.06 MB) |
BT-H2FOG COMPACT 2 - Manual Español |
| RF Remote - EU Declaration Size: (463.98 KB) |
RF Remote - EU Declaration of Conformity |
| BT-H2FOG_COMPACT_2 leaflet DE Size: (1.17 MB) |
PDF_LEAFLET_BT-H2FOG_COMPACT_2_B04752_de.pdf |
| BT-H2FOG_COMPACT_2 leaflet EN Size: (1.18 MB) |
PDF_LEAFLET_BT-H2FOG_COMPACT_2_B04752_en.pdf |
| BT-H2FOG_COMPACT_2 leaflet FR Size: (1.17 MB) |
PDF_LEAFLET_BT-H2FOG_COMPACT_2_B04752_fr.pdf |
| BT-H2FOG_COMPACT_2 leaflet NL Size: (1.17 MB) |
PDF_LEAFLET_BT-H2FOG_COMPACT_2_B04752_nl.pdf |
