Details
Details

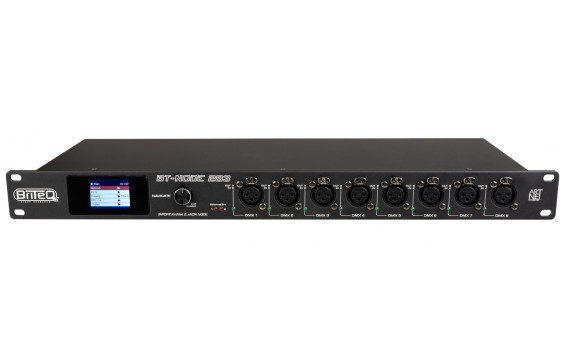

- High speed Art-Net and sACN Node with 8 highly configurable DMX ports.
- Automatic Ethernet bypass in case of power failure.
- Perfect for both install and rental market with DHCP and configurations over Art-Net.
- Versatile control options:
- Integrated web interface: easy configuration via network PC
- Big graphic LCD display and rotary encoder for easy monitoring and setup
- The 8 DMX ports can all be configured as in- or outputs:
- Configured as input: normal mode
- Configured as output: single, LTP, HTP mode
- Multiple pre-defined presets available and custom presets.
- Easy IP merging of universes.
- RDM over Art-Net compatible.
- All DMX ports are equipped with 3-pin XLR-connectors (5-pin XLR version also available).
- 100-240Vac 50/60Hz PowerCon® compatible in- and output for daisy chaining.
- Housing 1U 19" housing.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.2 x 4.4 x 16.7 |
|---|---|
| General : Weight (kg) | 1.65 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 7 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | 19" rack mountable |
| General : RU | 1U |
| General : IP rating | indoor |
| Control : Protocol | Art-Net, sACN, DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Connections : input | 3 pin XLR, artnet, RJ45, rdm, PowerCon® or compatible |
| Connections : output | 3 pin XLR, artnet, RJ45, rdm, PowerCon® or compatible |
| Brand | BRITEQ |
| EANCode | 5420025650441 |
Manual & Downloads
Manual & Downloads
 BT-NODE 283 & BT-NODE 285 - Manual EN Size: (1.73 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 English |
| BT-NODE 283 & BT-NODE 285 - Manual FR Size: (1.75 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 Français |
| BT-NODE 283 & BT-NODE 285 - Manual NL Size: (1.72 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 Nederlands |
| BT-NODE 283 & BT-NODE 285 - Manual DE Size: (1.74 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 Deutsch |
| BT-NODE 283 & BT-NODE 285 - Manual ES Size: (1.75 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 Español |
| BT-NODE 283 & BT-NODE 285 - Manual IT Size: (1.73 MB) |
BT-NODE 283 & BT-NODE 285 - Manual V1.1 Italiano |
| BT-NODE 283 & BT-NODE 285 - EU Declaration Size: (561.55 KB) |
BT-NODE 283 & BT-NODE 285 - EU Declaration of Conformity |
| BT-NODE_283 leaflet DE Size: (905.38 KB) |
PDF_LEAFLET_BT-NODE_283_B05044_de.pdf |
| BT-NODE_283 leaflet EN Size: (907.15 KB) |
PDF_LEAFLET_BT-NODE_283_B05044_en.pdf |
| BT-NODE_283 leaflet FR Size: (907.17 KB) |
PDF_LEAFLET_BT-NODE_283_B05044_fr.pdf |
| BT-NODE_283 leaflet NL Size: (904.41 KB) |
PDF_LEAFLET_BT-NODE_283_B05044_nl.pdf |
