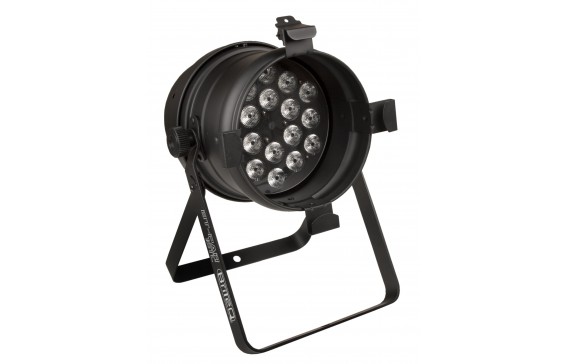

- High Power LED PARCAN, perfect for rental companies, discotheques, pro DJs, etc.
- Uses 18 powerful 3W RGB “CREE-brand” LEDs in a classic PAR armature
- Excellent built-in programs for wonderful, ever-changing, light shows:
- Standalone: custom colors or automatic/beat synchronized color changes.
- Master/slave mode: up to 16 units can be used together for wonderful preprogrammed, music synchronized lightshows. (optional CA-8 controller possible)
- DMX-controlled: 5modes:
- 4 DMX 4ch modes: R, G, B + Dimmer/strobe/sound chase
- 1 DMX 6ch mode: R, G, B, Master dim, strobe & color macro with 32 presets
- Controlled by the optional LEDCON-02 DJ-controller
- Compatible with CA-8: optional wired remote for improved and easy (DMX) master/slave control
- Thanks to the double bracket, it can be used as floor projector, under any possible projection angle
- Very smooth RGB color changes and TV-studio proof thanks to high freq. dimming electronics
- Different ways to set DMX start address:
- Fast remote DMX addressing using any standard DMX-controller.
- In master/slave mode you can address all units automatically.
- Beam angle = 25° (medium spot)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 24 x 20 x 35 |
|---|---|
| General : Weight (kg) | 3.34 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 69 |
| General : Color | black |
| General : Display | none |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 6 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : min. beam angle (°) | 25 |
| Light : max. beam angle (°) | 25 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | BRITEQ |
| EANCode | 5420025643474 |
Manual & Downloads
Manual & Downloads
 BT-PAR 18TC Manual Size: (1.74 MB) |
BT-PAR 18TC Manual |
| BT-PAR 18TC EC declaration Size: (567 KB) |
