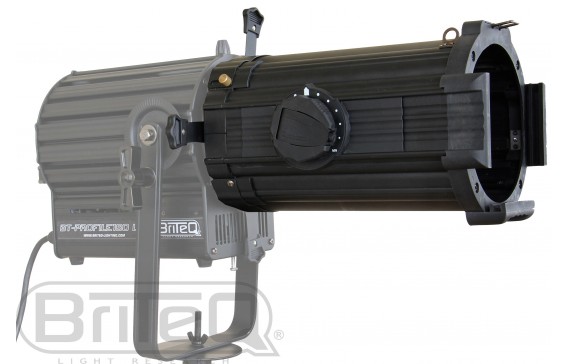

BT-PROFILE160/OPTIC 25-50

Optics for BT-PROFILE160/LED ENGINE with 25-50° zoom that can replace ETC Source Four-optics with optional gobo holder, and optional iris.
SKU: 06002
EANCODE: 5420025660020

Details

Details

  • A powerful LED profile spot based on high power COB LED technology
  • It’s a perfect replacement for the halogen units with high power consumption!
  • Rugged die-cast and extruded aluminum construction
  • For your convenience the projector is sold as two separate parts:



  • BT-PROFILE160/OPTIC
    • Specially coated optics for sharply defined crisp projections
    • Four profile blades, specially coated for minimum reflections
    • Two different optical units with adjustable zoom are available:
      • “BT-PROFILE160/OPTIC 15-30” (order code: 6001): 15°-30° zoom range
      • “BT-PROFILE160/OPTIC 25-50” (order code: 6002): 25°-50° zoom range
    • Lockable compartment for use of the optionally available:
      • GOBO Holder (“BT-PROFILE160/GOBO HOLDER”, order code: 6003)
        Outer diameter gobos: 86mm, optical diameter: 64.5mm
      • IRIS (“BT-PROFILE160/IRIS”, order code: 6004)
        Aperture diameter: adjustable from 5mm to 74mm
  • Combined zoom/focus operation with locking mechanism
  • Lockable lens compartment: easy access for internal lens cleaning
  • Can replace ETC Source Four-optics
  • Optical barrel can be rotated and locked I any position



  • BT-PROFILE160/LED ENGINE

This is the actual LED ENGINE containing the 160W COB LED, which is sold separately.

See linked products for more information

Specifications

Specifications

General : Application Stage & Rental, Theatre
General : Weight (kg) 5.25
General : Powerinput None
General : Energy Label No
General : Color black
General : Display none
General : IP rating indoor
Control : manual Yes
Control : Master/Slave No
Control : SMART-DMX No
Control : Standalone no
Control : programmable No
Control : upgradable software No
Light : lamp socket none
Light : lamp None
Light : mix colors No
Light : focus Manual
Light : zoom Manual
Light : iris No
Light : frost filter No
Light : min. beam angle (°) 25
Light : max. beam angle (°) 50
Light : min. refresh rate (kHz) No
Light : max. refresh rate (kHz) No
Brand BRITEQ
EANCode 5420025660020
Discontinued No
