- Powerful 100W LED theater Fresnel with CCT= 3000K
- The light output can be easily compared to that of traditional 1kW halogen theatre projectors!
- Exceptional photometric / price performance: CRI / Ra >96, TLCI >97, CQS >94, Rf >92, Rg >97 !
- Manual beam angle adjustment: 15° ~ 45° (field angle: 22° ~ 60°)

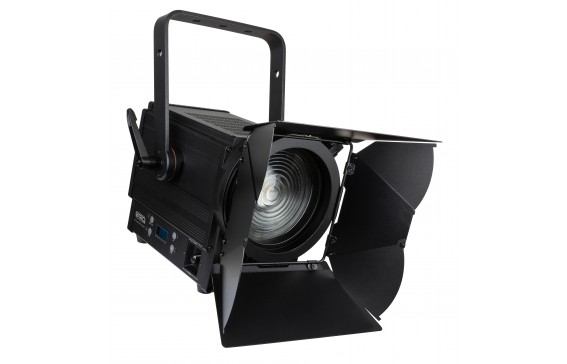

- Color frame for use of color filters and eight-leaf barndoor included.
- No more heavy and expensive dimmer packs needed!
- Very silent operation: temperature controlled, low noise cooling fan.
- LCD-display to navigate easily through the setup menu!
- Manual or DMX-controlled: 4 different channel modes (8bit & 16bit dimming) for maximum flexibility.
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code: B04645)
- Flicker free TV-recordings thanks to 1.2kHz LED refresh rate!
- Manual dimming & zoom/focus control: easy projector alignment on the stage + use on exhibition booths.
- Selectable lamp behavior: halogen lamp (slow) or led (fast).
- Four dimmer curves: linear, square, inverse square, S-curve.
- In case of DMX failure, you can choose between manual, blackout and freeze mode.
- RDM-functionality for easy remote setup & monitoring: DMX addressing, channel mode, temperature, …
- Lock function to avoid unwanted altering of the settings.
- Default factory settings + user settings can be saved/loaded.
- 3 & 5pin DMX in/outputs + ProLock in/outputs for easy daisy chaining.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | See drawing |
|---|---|
| General : Weight (kg) | 7.2 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 105 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | M12 |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | DMX, Wireless DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 1 |
| Control : maximum DMX channels | 4 |
| Light : lamp socket | No |
| Light : Lux | 2630 (@ 5m beam 16°) |
| Light : lamp | COB |
| Light : min. color temperature (K) | 3000 |
| Light : max. color temperature (K) | 3000 |
| Light : CRI | 95 |
| Light : colors | White, Warm white |
| Light : mix colors | No |
| Light : functions | manual focus, manual zoom |
| Light : min. beam angle (°) | 15 |
| Light : max. beam angle (°) | 45 |
| Light : max. refresh rate (kHz) | 1.2 |
| Connections : input | 3 pin XLR, 5 pin XLR, wireless DMX optional, usb, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, usb, PowerCon® or compatible |
| Brand | BRITEQ |
| EANCode | 5420025660297 |
Manual & Downloads
Manual & Downloads
 BT-THEATRE 100MZ - Manual EN Size: (1.98 MB) |
BT-THEATRE 100MZ - Manual English |
| BT-THEATRE 100MZ - Manual FR Size: (3.22 MB) |
BT-THEATRE 100MZ - Mode d'emploi Français |
| BT-THEATRE 100MZ - Manual NL Size: (1.88 MB) |
BT-THEATRE 100MZ - Handleiding Nederlands |
| BT-THEATRE 100MZ - Manual DE Size: (3.22 MB) |
BT-THEATRE 100MZ - Bedienungsanleitung Deutsch |
| BT-THEATRE 100MZ - EC Declaration Size: (231.9 KB) |
BT-THEATRE 100MZ - EC Declaration of Conformity |
 BT-THEATRE 100MZ - Firmware V1.02 Size: (196.1 KB) |
BT-THEATRE 100MZ - Firmware V1.02 (2022-04-06) |
| BT-THEATRE 100MZ - Chromateq fixture files Size: (3.1 KB) |
BT-THEATRE 100MZ - Chromateq fixture files |
 Fixture files - CHAMSYS |
| BT-THEATRE 100MZ - IES Photometric files Size: (73.9 KB) |
BT-THEATRE 100MZ - IES Photometric files |
| BT-THEATRE_100M PDF leaflet Deutsch Size: (1.46 MB) |
PDF_LEAFLET_BT-THEATRE_100M_B06029_de.pdf |
| BT-THEATRE_100M PDF leaflet English Size: (1.46 MB) |
PDF_LEAFLET_BT-THEATRE_100M_B06029_en.pdf |
| BT-THEATRE_100M PDF leaflet Français Size: (1.46 MB) |
PDF_LEAFLET_BT-THEATRE_100M_B06029_fr.pdf |
| BT-THEATRE_100M PDF leaflet Nederlands Size: (1.46 MB) |
PDF_LEAFLET_BT-THEATRE_100M_B06029_nl.pdf |
