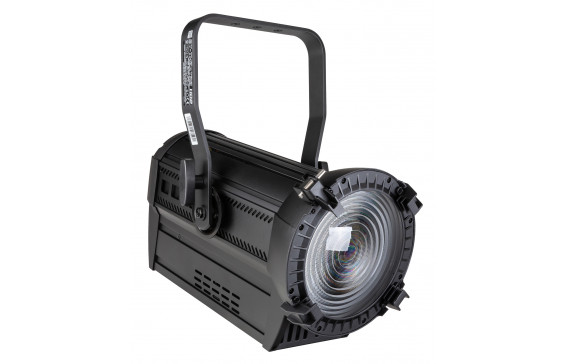

- A powerful “ALL-IN-1” LED theater spot with motorized 14° ~ 55° zoom.
- No more need for separate white and color projectors, BT-THEATRE HD2 does it all:
- Perfect WHITE with high CRI > 90Ra and CCT presets
- Rich COLOR selection with color presets!
- Thanks to the new CCS Color Calibration System the color differences between different batches is a problem of the past!
- Different CCT presets for white: …, 2700K, …, 3000K, 3200K, …, 4000K, …, 5600K, …
- Different color presets (LEE® / ROSCO® numbering)
- Based on a 200watt 5-color RGBAL-LED (Red, Green, Blue, Amber, Lime)
- Very silent operation: heat-pipe technology with low noise cooling fan and different presets (live, studio, …)
- DMX-controlled: 4 different channel modes for maximum flexibility
- RDM-functionality for easy remote setup: DMX addressing, channel mode, …
- Flicker free TV-recordings thanks to the adjustable high LED-refresh rate!
- Four dimmer settings with different behavior & speed.
- Manual control for dimming, colors, CCT & zoom.
- OLED-display to navigate easily through the setup menu!
- In case of DMX failure, you can choose between blackout and freeze mode.
- Lock function to avoid unwanted altering of the settings.
- Rugged extruded aluminum housing.
- 3 & 5pin DMX in/outputs + PowerCON in/outputs for easy daisy chaining.
- An 8-leaf barndoor (BT-THEATRE BARN2) is optionally available.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 45 x 29 x 26 |
|---|---|
| General : Weight (kg) | 7.56 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 240 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 19 |
| Light : lamp socket | No |
| Light : Lux | 1428 (@5m beam 14°) |
| Light : lamp | LED |
| Light : min. color temperature (K) | 1800 |
| Light : max. color temperature (K) | 8000 |
| Light : CRI | 90 |
| Light : colors | Red, Green, Blue, Amber, Lime, RGBAL |
| Light : mix colors | No |
| Light : functions | motorized zoom |
| Light : min. beam angle (°) | 14 |
| Light : max. beam angle (°) | 55 |
| Light : max. refresh rate (kHz) | 25 |
| Connections : input | 3 pin XLR, 5 pin XLR, rdm, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, PowerCon® or compatible |
| Brand | BRITEQ |
| EANCode | 5420025660358 |
Manual & Downloads
Manual & Downloads
 BT-THEATRE HD2 - Manual V1.0 NL Size: (2.77 MB) |
BT-THEATRE HD2 - Manual V1.0 Nederlands |
| BT-THEATRE HD2 - Manual V1.0 FR Size: (2.75 MB) |
BT-THEATRE HD2 - Manual V1.0 Français |
| BT-THEATRE HD2 - Manual V1.0 DE Size: (2.75 MB) |
BT-THEATRE HD2 - Manual V1.0 Deutsch |
| BT-THEATRE HD2 - Manual V1.0 ES Size: (2.75 MB) |
BT-THEATRE HD2 - Manual V1.0 Español |
| BT-THEATRE HD2 - Manual V1.0 EN Size: (1.81 MB) |
BT-THEATRE HD2 - Manual V1.0 English |
| BT-THEATRE HD2 - Manual V1.1 EN Size: (3.06 MB) |
BT-THEATRE HD2 - Manual V1.1 (from FW V2.0.1) English |
| BT-THEATRE HD2 - Manual V1.1 NL Size: (2.96 MB) |
BT-THEATRE HD2 - Manual V1.1 (from FW V2.0.1) Nederlands |
| BT-THEATRE HD2 - Manual V1.1 FR Size: (2.94 MB) |
BT-THEATRE HD2 - Manual V1.1 (from FW V2.0.1) Français |
| BT-THEATRE HD2 - Manual V1.1 DE Size: (2.94 MB) |
BT-THEATRE HD2 - Manual V1.1 (from FW V2.0.1) Deutsch |
| BT-THEATRE HD2 - Manual V1.1 ES Size: (2.94 MB) |
BT-THEATRE HD2 - Manual V1.1 (from FW V2.0.1) Español |
| BT-THEATRE HD2 - CE Declaration Size: (229.14 KB) |
BT-THEATRE HD2 - CE Declaration |
 BT-THEATRE HD2 - GrandMA2 Fixture Size: (10.36 KB) |
BT-THEATRE HD2 - GrandMA2 Fixture |
| BT-THEATRE HD2 - AVO Fixture Size: (2.72 KB) |
BT-THEATRE HD2 - AVO Fixture |
 Fixture files - GDTF - BT-THEATRE HD2 |
|
| Fixture files - CHAMSYS |
| BT-THEATRE_HD2 PDF leaflet Deutsch Size: (1.09 MB) |
PDF_LEAFLET_BT-THEATRE_HD2_B06035_de.pdf |
| BT-THEATRE_HD2 PDF leaflet English Size: (1.09 MB) |
PDF_LEAFLET_BT-THEATRE_HD2_B06035_en.pdf |
| BT-THEATRE_HD2 PDF leaflet Français Size: (1.09 MB) |
PDF_LEAFLET_BT-THEATRE_HD2_B06035_fr.pdf |
| BT-THEATRE_HD2 PDF leaflet Nederlands Size: (1.09 MB) |
PDF_LEAFLET_BT-THEATRE_HD2_B06035_nl.pdf |
