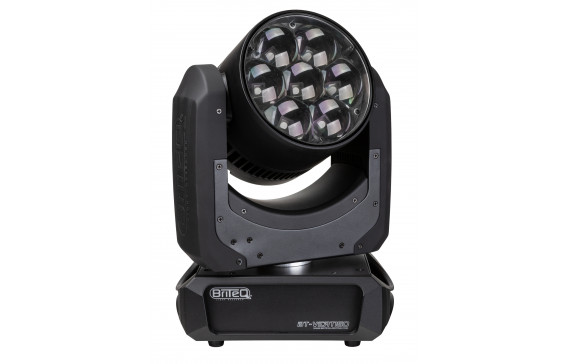

- BT-VERTIGO is a small and very powerful moving wash projector.
- Based on 7x60W RGBL LED light sources.
- Very high and extremely stable light output: 11555 lux @5m (4°) - 201 lux @5m (45°).
- Perfect for: Fast-moving effects and projection of very evenly colored beams.
- Wide range 16bit electronic zoom, from 4° to 70°.
- High quality CCT presets: 2700K - 8000K (CRI >80).
- Accurate strobe with built in random, pulse and burst effects.
- Smooth 16bit dimmer with fast and slow dimming mode.
- Two dimmer curves: linear, square.
- Super fast 16bit pan/tilt/zoom movements with position correction and pan/tilt speed channel.
- Silent fan mode for theater applications.
- Uses 17, 23 or 21 DMX channels + RDM-functionality for easy remote setup.
- The matrix LCD-display assures easy navigation in the different setup menus.
- 5pin DMX in/outputs + PowerCON TRUE1 compatible.
- DMX in/outputs can be converted to XLR 3pin with BT-XLR5TO3 COMBIKIT.
- Equipped with an omega bracket for fast installation.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 25 x 16.5 x 38.4(H) |
|---|---|
| General : Weight (kg) | 6.25 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 300 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | included omega bracket |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone automatic, manual, DMX |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 17 |
| Control : maximum DMX channels | 23 |
| Light : lamp socket | No |
| Light : Lux | 11555 lux @5m (beam 4°) |
| Light : lumen output max (lm) | 2940 |
| Light : lamp | LED |
| Light : min. color temperature (K) | 2700 |
| Light : max. color temperature (K) | 8000 |
| Light : CRI | 80 |
| Light : colors | RGBL |
| Light : mix colors | Yes |
| Light : functions | motorized zoom |
| Light : min. beam angle (°) | 4 |
| Light : max. beam angle (°) | 45 |
| Light : max. refresh rate (kHz) | 4.8 |
| Connections : input | 5 pin XLR, rdm, PowerCon® TRUE1 or compatible |
| Connections : output | 5 pin XLR, rdm, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025655859 |
Manual & Downloads
Manual & Downloads
 BT-VERTIGO - Manual EN Size: (2.8 MB) |
BT-VERTIGO - Manual V1.0 English |
| BT-VERTIGO - Manual FR Size: (2.81 MB) |
BT-VERTIGO - Manual V1.0 Français |
| BT-VERTIGO - Manual NL Size: (2.81 MB) |
BT-VERTIGO - Manual V1.0 Nederlands |
| BT-VERTIGO - Manual DE Size: (2.82 MB) |
BT-VERTIGO - Manual V1.0 Deutsch |
| BT-VERTIGO - Manual ES Size: (2.8 MB) |
BT-VERTIGO - Manual V1.0 Español |
| BT-VERTIGO - EC Declaration Size: (447.3 KB) |
BT-VERTIGO - EC Declaration of Conformity |
 BT-VERTIGO - Firmware V1.01 Size: (656.52 KB) |
BT-VERTIGO - Firmware V1.01: improved noise levels (2025-06-24) |
| BT-VERTIGO - IES Files Size: (16.54 KB) |
BT-VERTIGO - IES Files |
| BT-VERTIGO - Photometric Reports Size: (4.62 MB) |
BT-VERTIGO - Photometric Reports |
