Details
Details
- Very useful tool for testing the water resistance of IP-certified fixtures from most brands after they have been opened for maintenance or repair.
- Can be used to test products with IP65, IP66, IP67 and IP68 protection.
- Tests up to 45 kPa above or below atmospheric pressure.
- Variable time windows for leak tests.
- Standard test takes only about 1 minute!

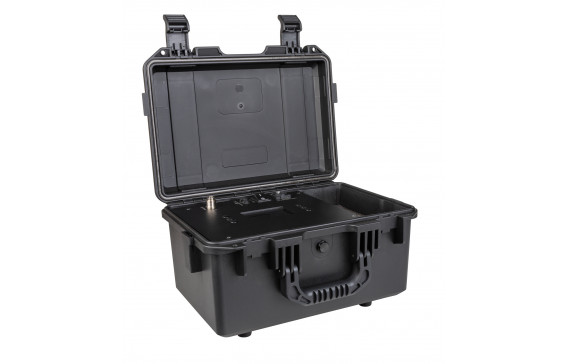

- Portable and durable flight case for easy on-site testing.
- Can be used with any IP-certified luminaire equipped with a standard M12 air pressure valve.
- USB-C connection for exporting measurement data and for updates.
- 8 GB internal memory for measurement data.
- Internal clock with time and date settings.
Technical information:
- Power input: AC 100-240V, 50Hz
- Power consumption: 40W
- Display: LCD
- IP rating: IP20
- Upgradable software: yes
- Input connection: PowerCon® TRUE1 or compatible
- Connections: USB-C
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 37 x 27 x 20 |
|---|---|
| General : Weight (kg) | 5.3 |
| General : Color | black |
| Brand | BRITEQ |
| EANCode | 5420025699044 |
Manual & Downloads
Manual & Downloads
 BTI-IPTEST - Manual EN Size: (2.39 MB) |
BTI-IPTEST - Manual English |
| BTI-IPTEST - Manual NL Size: (2.6 MB) |
BTI-IPTEST - Manual Nederlands |
| BTI-IPTEST - Manual FR Size: (2.62 MB) |
BTI-IPTEST - Manual Français |
| BTI-IPTEST - Manual DE Size: (2.6 MB) |
BTI-IPTEST - Manual Deutsch |
| BTI-IPTEST - Manual ES Size: (2.62 MB) |
BTI-IPTEST - Manual Español |
| BTI-IPTEST - EU Declaration Size: (444.65 KB) |
BTI-IPTEST - EU Declaration of Conformity |
 BTI-IPTEST - Firmware V1.03 Size: (404.45 KB) |
BTI-IPTEST - Firmware V1.03 (2026-01-13) |
| BTI-IPTEST leaflet DE Size: (1.08 MB) |
PDF_LEAFLET_BTI-IPTEST_B09904_de.pdf |
| BTI-IPTEST leaflet EN Size: (1.08 MB) |
PDF_LEAFLET_BTI-IPTEST_B09904_en.pdf |
| BTI-IPTEST leaflet FR Size: (1.07 MB) |
PDF_LEAFLET_BTI-IPTEST_B09904_fr.pdf |
| BTI-IPTEST leaflet NL Size: (1.08 MB) |
PDF_LEAFLET_BTI-IPTEST_B09904_nl.pdf |
