Details
Details

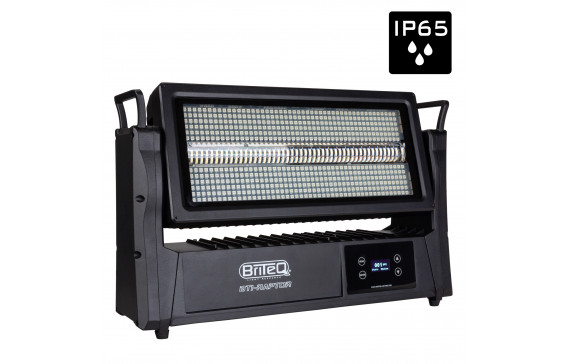

- Fast and very powerful OUTDOOR TILT STROBE
- Perfect for concert stages, discotheques, dry rental, …
- Tilt panel with a combination of powerful LED pixels to create stunning effects:
- Central white strobe line: 144x 5W CW leds with 8 sections
- 16 RGB zones: 576x RGB leds with 2x 8 sections
- Electronic FROST with linear control
- Many internal 2-layer effect chases for fast programming!
- Very efficient fan cooling!
- Fast 270° TILT movements
- DMX (RDM) + Art-Net™ control: 5 modes with 10 to 80CH
- DMX XLR 5pin in/out (conversion kit available: BT-XLR5TO3 KIT → 3pin XLR)
- Vertical and horizontal rigging possible using included omega brackets
- Flight case (80x60cm) for 4pcs BTI-RAPTOR + accessories available
NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 51 x 32 x 14 |
|---|---|
| General : Weight (kg) | 13 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 1000 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | included omega bracket |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | Art-Net, DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 10 |
| Control : maximum DMX channels | 80 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGBW |
| Light : mix colors | Yes |
| Light : functions | linear frost |
| Light : max. refresh rate (kHz) | 20 |
| Connections : input | 5 pin XLR, artnet, RJ45, rdm, PowerCon® TRUE1 or compatible |
| Connections : output | 5 pin XLR, artnet, RJ45, rdm, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025647755 |
Manual & Downloads
Manual & Downloads
 BTI-RAPTOR - Manual EN Size: (2.24 MB) |
BTI-RAPTOR - Manual English |
| BTI-RAPTOR - EU Declaration Size: (555.24 KB) |
BTI-RAPTOR - EU Declaration of Conformity |
 BTI-RAPTOR - Fixture files - GDTF |
BTI-RAPTOR - Fixture files - GDTF |
 BTI-RAPTOR - IES Files Size: (16.34 KB) |
BTI-RAPTOR - IES Files |
| BTI-RAPTOR - Photometric Reports Size: (2.54 MB) |
BTI-RAPTOR - Photometric Reports |
| BTI-RAPTOR leaflet DE Size: (1.26 MB) |
PDF_LEAFLET_BTI-RAPTOR_B04775_de.pdf |
| BTI-RAPTOR leaflet EN Size: (1.26 MB) |
PDF_LEAFLET_BTI-RAPTOR_B04775_en.pdf |
| BTI-RAPTOR leaflet FR Size: (1.25 MB) |
PDF_LEAFLET_BTI-RAPTOR_B04775_fr.pdf |
| BTI-RAPTOR leaflet NL Size: (1.25 MB) |
PDF_LEAFLET_BTI-RAPTOR_B04775_nl.pdf |
