Details
Details

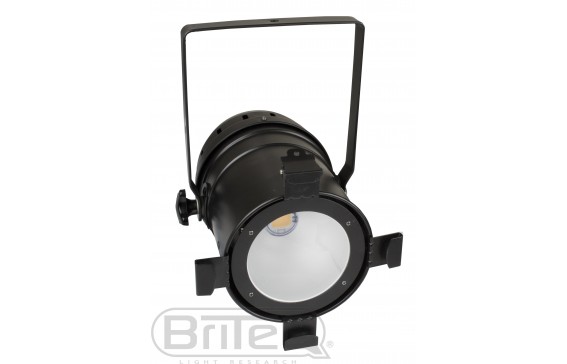

- High Power LED PARCAN, perfect for showrooms, shops, exhibition booths, rental, …
- Uses a powerful 100W white COB LED in a classic PAR armature
- CW (cold white): 5600K daylight, perfect for showrooms, shops and TV/video
- LCD-display to select different working modes:
- Standalone (master): set dimmer + strobe (if needed)
- Master/slave mode: connect several projectors together, the first projector controls the others.
- DMX-controlled, 1CH: dimmer
- DMX-controlled, 2CH: dimmer, strobe
- Selectable lamp behavior: halogen lamp (slow) or led (fast)
- Four dimmer curves: linear, square, inverse square, S-curve
- In case of DMX failure you can choose between blackout and freeze mode.
- Wide 60° beam angle for uniform output.
- The filter frame with the special 25° lens can be used to create a narrower and more powerful beam.
- Very low noise fan cooling.
- The filter frame can be used to add optional color filters.
- Available in Black and Silver polished
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 41.7 x 28.6 x 26 cm |
|---|---|
| General : Weight (kg) | 2.8 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 130 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 2 |
| Light : lamp socket | No |
| Light : lamp | COB |
| Light : min. color temperature (K) | 5600 |
| Light : max. color temperature (K) | 5600 |
| Light : CRI | 75 |
| Light : colors | Cold white |
| Light : mix colors | No |
| Light : min. beam angle (°) | 60 |
| Light : max. beam angle (°) | 60 |
| Light : max. refresh rate (kHz) | 3.6 |
| Connections : input | 3 pin XLR, Schuko CEE 7/7 |
| Connections : output | 3 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025644099 |
Manual & Downloads
Manual & Downloads
 COB PAR56-100CW BLACK Manual Size: (1.66 MB) |
|
| COB PAR56-100CW BLACK EC declaration Size: (670.88 KB) |
|
| COB PAR56-100CW EC declaration Size: (646.05 KB) |
COB PAR56-100CW EC declaration |
 COB PAR56-100WW/100CW - Chromateq Profiles Size: (2.45 KB) |
COB PAR56-100WW and COB PAR56-100CW - Chromateq Profiles |
| COB_PAR56-100CW PDF leaflet Deutsch Size: (539.87 KB) |
PDF_LEAFLET_COB_PAR56-100CW_04409_de.pdf |
| COB_PAR56-100CW PDF leaflet English Size: (539.16 KB) |
PDF_LEAFLET_COB_PAR56-100CW_04409_en.pdf |
| COB_PAR56-100CW PDF leaflet Français Size: (541.58 KB) |
PDF_LEAFLET_COB_PAR56-100CW_04409_fr.pdf |
| COB_PAR56-100CW PDF leaflet Nederlands Size: (539.42 KB) |
PDF_LEAFLET_COB_PAR56-100CW_04409_nl.pdf |
