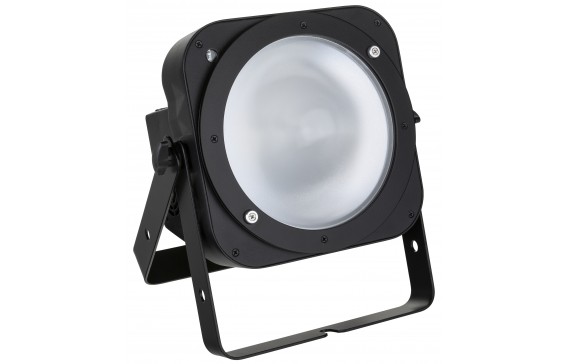

- Compact energy saving COB LED-projector !
- NO separate LEDs: equipped with a 100W 2nd generation COB LED assuring perfect color mixing and the look of a traditional lamp !
- Two different beam angles:
- 80° wide angle: perfect for close range wall washing
- 25° (supplied lens): for sharp and well aligned strong beam projection!
- IR-remote controller included: no difficult controllers needed, perfect for DJ's !
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (optional)
- Different working modes:
- Standalone with IR-remote: automatic / beat synchronized color patterns.
- Master/slave mode: several projectors can be used together for wonderful preprogrammed, music synchronized lightshows.
- DMX-controlled: different channel modes with program selection and individual RGB control.
- Can be used with LEDCON-02 Mk2 easy controller!
- Perfect for mobile applications: small and very low power consumption
- Neutrik® PowerCON® in/out with 16A Power linking capacity for use with our POWERCON/XLR COMBI CABLES!
- Many applications possible: Discotheques, DJs, rental companies, ...
- 0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
- 2x8 digit LED-display for easy menu navigation
- Double bracket: easy for use as floor spot !
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 24.5 x 28 x 14 cm |
|---|---|
| General : Weight (kg) | 3.46 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 120 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : Type included remote | IR-2 REMOTE |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 6 |
| Light : lamp socket | No |
| Light : lamp | COB |
| Light : colors | RGB |
| Light : mix colors | No |
| Light : zoomrange | N/A |
| Light : min. beam angle (°) | 25 |
| Light : max. beam angle (°) | 80 |
| Light : max. refresh rate (kHz) | 3.6 |
| Connections : input | 3 pin XLR, wireless DMX optional, usb, PowerCon® or compatible |
| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | BRITEQ |
| EANCode | 5420025644150 |
Manual & Downloads
Manual & Downloads
 COB SLIM100-RGB - Manual V1.0 Size: (2.67 MB) |
COB SLIM100-RGB - User Manual V1.0 (EN/FR/NL/DE/ES) |
| COB SLIM100-RGB - Manual V2.0 with M-DMX Size: (2.69 MB) |
COB SLIM100-RGB - User Manual V2.0 with M-DMX (EN/FR/NL/DE/ES) |
| COB SLIM100-RGB - EC Declaration Size: (635.89 KB) |
COB SLIM100-RGB - EC Declaration of Conformity |
 COB SLIM100-RGB - Firmware V1.09 Size: (231.61 KB) |
COB SLIM100-RGB - Firmware V1.09 (2021-10-18) |
| COB SLIM100-RGB - Chromateq Profiles Size: (1.48 KB) |
COB SLIM100-RGB - Chromateq Profiles |
 Fixture files - CHAMSYS |
| COB_SLIM100-RGB PDF leaflet Deutsch Size: (1.4 MB) |
PDF_LEAFLET_COB_SLIM100-RGB_B04415_de.pdf |
| COB_SLIM100-RGB PDF leaflet English Size: (1.4 MB) |
PDF_LEAFLET_COB_SLIM100-RGB_B04415_en.pdf |
| COB_SLIM100-RGB PDF leaflet Français Size: (1.4 MB) |
PDF_LEAFLET_COB_SLIM100-RGB_B04415_fr.pdf |
| COB_SLIM100-RGB PDF leaflet Nederlands Size: (1.4 MB) |
PDF_LEAFLET_COB_SLIM100-RGB_B04415_nl.pdf |
