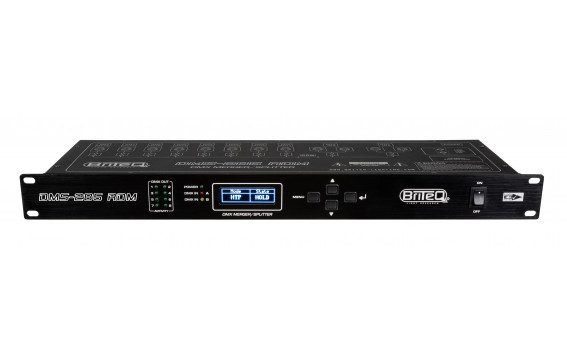

- This DMX merger + splitter + Booster with RDM support is the perfect all-in-one solution to secure your DMX-installations: 100% electrical isolation between all in/outputs!
- 2 DMX-inputs + 8 DMX-outputs, each equipped with 5pin XLR-connectors.
- Different port modes to combine 2 DMX signals (on inputs A and B) in different ways:
- HTP : the highest value of 2 identical channels from 2 DMX-signals has priority.
- LTP : the last changed value of 2 identical channels from 2 DMX-signals has priority.
- Backup : when the DMX-signal on input A fails, the DMX-signal on input B takes over immediately.
- A: 1-4 / B: 5-8 : DMX-signal on input A assigned to outputs 1 to 4, input B assigned to outputs 5-8.
- The splitter function distributes the DMX-signal(s) from the A/B input(s) over 8 identical outputs.
- Full electric isolation : all inputs and outputs are 100% isolated from each other: problems that occur on any in/output will not influence the other in/outputs!
- RDM filtering : RDM on both inputs can be filtered to prevent unexpected behavior of DMX equipment.
- The timing of the DMX-outputs can be adapted from 20Hz (slow) to 40Hz (fast) for increased compatibility while connecting “slow” DMX-devices to “fast” DMX-controllers.
- Output behavior can be selected when suddenly both DMX-inputs fail:
- No DMX : no DMX signal on the outputs.
- HOLD : keep the last DMX values on the outputs.
- ZERO : set the DMX values on all outputs to zero.
- Easy setup via graphic OLED display.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.2 x 4.4 x 15.6 |
|---|---|
| General : Weight (kg) | 2.3 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | 19" rack mountable |
| General : RU | 1U |
| General : IP rating | indoor |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Connections : input | 5 pin XLR, rdm, IEC |
| Connections : output | 5 pin XLR, rdm |
| Brand | BRITEQ |
| EANCode | 5420025650434 |
Manual & Downloads
Manual & Downloads
 DMS-283/285 RDM - manual EN Size: (1 MB) |
DMS-283/285 RDM - manual EN |
| DMS-283/285 RDM - manual DE Size: (1011.15 KB) |
DMS-283/285 RDM - manual DE |
| DMS-283/285 RDM - manual ES Size: (994.7 KB) |
DMS-283/285 RDM - manual DE |
| DMS-283/285 RDM - manual FR Size: (1002.41 KB) |
DMS-283/285 RDM - manual FR |
| DMS-283/285 RDM - manual NL Size: (976.02 KB) |
DMS-283/285 RDM - manual NL |
| DMS-285 RDM - EC Declaration Size: (446.71 KB) |
DMS-285 RDM - EC Declaration |
| DMS-285_RDM leaflet DE Size: (839.7 KB) |
PDF_LEAFLET_DMS-285_RDM_B05043_de.pdf |
| DMS-285_RDM leaflet EN Size: (838.9 KB) |
PDF_LEAFLET_DMS-285_RDM_B05043_en.pdf |
| DMS-285_RDM leaflet FR Size: (840.01 KB) |
PDF_LEAFLET_DMS-285_RDM_B05043_fr.pdf |
| DMS-285_RDM leaflet NL Size: (838.27 KB) |
PDF_LEAFLET_DMS-285_RDM_B05043_nl.pdf |
Reviews & References
Customer Reviews (1)
- Very happy with my purchaseReview by SK Lighting
-
Easy front panel setup, full electric isolation, RDM filtering...Rating
You can split its 2 inputs to 2x 4 outputs which is a great space-, weight- and money saver. Instead of having to buy 4 units to split 4 universes I only need 2.
You can turn of the back light of the screen in the menu to turn of the display (when no buttons are pressed) which is great. (Posted on 7/16/2025)
