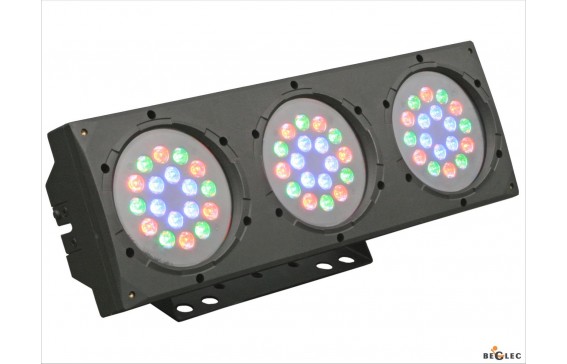

- Very powerful RGB LED projector, based on 54 high power 1W LEDs (18 RED + 18 GREEN + 18 BLUE)
- The use of LED Technology makes important energy (cost) savings possible compared to units based on halogen and discharge lamps!
- Thanks to the anti-UV and waterproof IP65 housing , this LED projector is your first choice:
- To illuminate all kinds buildings like: hotels, shops, discotheques, public & amusement parks, fairground attractions, ...
- To light up small, medium and large stages
- Beam angle: 15°
- The 400Hz LED scan rate makes it also a perfect choice in TV studios (no interferences with TV-cameras)
- Completely silent: the projector is cooled by natural air convection so no noisy fans are needed!
- The lightweight aluminium housing of several units can be interlocked together to create massive 'blinder' setups
- All 3 internal projectors can be used and programmed independently or used together for optimal output power.
- Can be used:
- In standalone mode with the special pre-programmed PB-01 controller (with internal clock)
- In standalone mode with its internal automatic programs (wash, effect and custom programs)
- With any standard DMX-controller (12 channels needed for RGB color mixing, color macros, strobe, dimmer, ...)
- Menu driven LCD-display (2x 16 characters) with password protection on the rear panel
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 57 x 21 x 19 cm |
|---|---|
| General : Weight (kg) | 9.91 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 80 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 12 |
| Light : lamp socket | No |
| Light : Lux | 418 |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : min. beam angle (°) | 15 |
| Light : max. beam angle (°) | 15 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | BRITEQ |
| EANCode | 5420025643214 |
Manual & Downloads
Manual & Downloads
 LED POWERBANK - 15° Manual Size: (2.3 MB) |
| LED POWERBANK - 15° EC declaration Size: (570.35 KB) |
