Details
Details

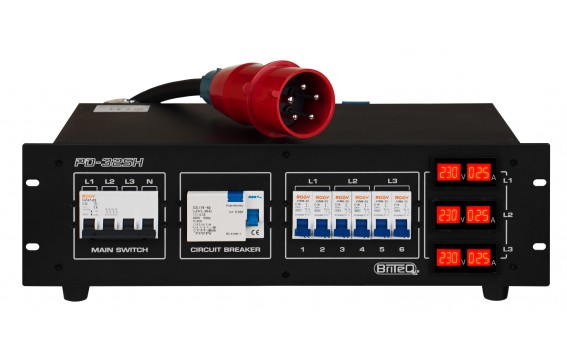

- This 3-phase power distributor is designed to improve safety in both mobile, rental and fixed installations.
- Choice of different outputs for maximum flexibility (rental companies!):
- 6x earthed 16A mains outlet sockets: (2 sockets per phase, French/Belgian 16A blue mains sockets)
- 1x 16PIN industrial rectangular connector: output for use with standard wiring for rental multi-cables
- 1x 19PIN industrial round connector: output for use with standard wiring for rental multi-cables
- Designed and build to the highest European and international safety standards.
- Oversized internal wiring for increased reliability!
- 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected!
- The 30mA, 4pole residual current circuit breaker prevents electrical shocks
- Accurate digital 3-digit voltmeters per phase
- Accurate digital 3-digit ampere meters per phase
- Two C16 (16A - 1P+N) automatic circuit breakers per phase
- 1,5m long mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug
- CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass
- Extremely robust 19"/3U metal housing
Technical Specifications
Technical Specifications
| General : Weight (kg) | 8.78 |
|---|---|
| General : Energy Label | No |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | 19" rack mountable |
| General : RU | 3U |
| General : IP rating | indoor |
| Control : Modes | standalone fixed |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Connections : input | 5-pole CEE |
| Connections : output | Schuko CEE 7/7, socapex 19-pin, harting 16-pin |
| Brand | BRITEQ |
| EANCode | 5420025646369 |
