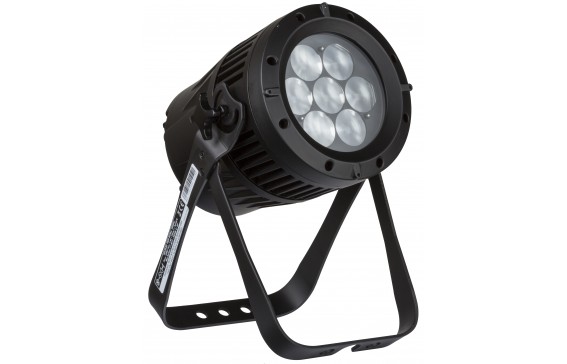

- Very powerful RGBW LED projector (14700lux @ 2m / 8°) based on 7 quad-color 12W “CREE” LEDs:
- Unwanted RGBW shadows are completely eliminated
- Perfect and evenly spread color mixing, even at short range.
- Motorized zoom: 8° - 40°
- 2 zone pixel control (center + ring effect)
- The sturdy die cast aluminium housing is IP66 waterproof.
- Perfect alternative for traditional PAR64 projectors: only 128Watt power consumption at full output and no need for heavy dimmer packs!
- The use of LED Technology makes important energy (cost) savings possible compared to units based on halogen lamps!
- Different DMX operation modes: from 3 to 25 channels
- Thanks to all kinds of special features this projector is the choice of professional light designers:
- Color temperature presets 3200K ~ 10.000K
- White & RGB Calibration
- Different dimmer curves
- Special waterproof Lockable Power Connector (Neutrik PowerCon® compatible)
- Special waterproof DMX input/output connector
- Recall custom programs by DMX
- Menu driven LED-display with password protection on the rear panel
- Tempered glass lens protection
- The 1200Hz LED scan rate makes it also a perfect choice in TV studios (no interferences with TV-cameras)
- Completely silent: the projector is cooled by natural air convection so no noisy fans are needed!
- The lightweight aluminium housing uses a double hanging bracket so it can also be used as floor projector.
- NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 35,5 x 19,1 x 23,6 cm |
|---|---|
| General : Weight (kg) | 7.3 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | N/A |
| General : Power consumption W | 128 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | outdoor |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 25 |
| Light : lamp socket | none |
| Light : Lux | 14700lux @ 2m @ 8° |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3200 |
| Light : max. color temperature (K) | 10000 |
| Light : colors | Red, Green, Blue, White, RGB, RGBW |
| Light : mix colors | Yes |
| Light : functions | motorized zoom |
| Light : min. beam angle (°) | 8 |
| Light : max. beam angle (°) | 40 |
| Connections : input | 3 pin XLR, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025643993 |
Manual & Downloads
Manual & Downloads
 PRO BEAMER ZOOM - RENTAL Manual EN Size: (3.68 MB) |
PRO BEAMER ZOOM - RENTAL Manual English |
| PRO BEAMER ZOOM - RENTAL EC Declaration Size: (633.25 KB) |
PRO BEAMER ZOOM - RENTAL EC Declaration of Conformity |
| PRO_BEAMER_ZOOM PDF leaflet Deutsch Size: (1.25 MB) |
PDF_LEAFLET_PRO_BEAMER_ZOOM_B04399_de.pdf |
| PRO_BEAMER_ZOOM PDF leaflet English Size: (1.25 MB) |
PDF_LEAFLET_PRO_BEAMER_ZOOM_B04399_en.pdf |
| PRO_BEAMER_ZOOM PDF leaflet Français Size: (1.25 MB) |
PDF_LEAFLET_PRO_BEAMER_ZOOM_B04399_fr.pdf |
| PRO_BEAMER_ZOOM PDF leaflet Nederlands Size: (1.25 MB) |
PDF_LEAFLET_PRO_BEAMER_ZOOM_B04399_nl.pdf |
