Details
Details

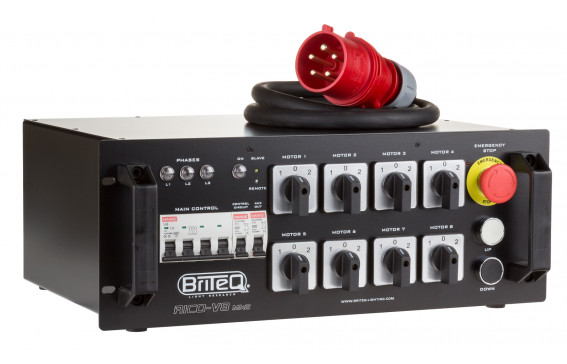

- Standalone manual chain hoist motor controller for up to 8 separate motors.
- Double safety by using an additional relay backup system that activates in critical situations.
- Fully compatible with the previous RICO-V4 / RICO-V8 models!
- Several units can be linked in master/slave using the link in/out on the back panel:
- Easy control for a larger number of chain hoists
- Simultaneous hoist control using the UP/DOWN buttons on the master controller
- Centralized Emergency stop on the master controller
- “Slave” indicator led
- Manual phase inversion switch for each output.
- Choice of different outputs for maximum flexibility (rental companies!):
- 4x individual CEE16 4pole 16A outputs
- 2x 16PIN multichannel industrial rectangular connector, Harting® compatible
- 2x 19PIN multichannel industrial round connector, Socapex® compatible
- 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use
- Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
- Phase indicators to easily check if the 3phases are available.
- 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
- C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
- Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
- Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
- CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
- Extremely robust 19"/4U metal housing.
- Designed and build in Europe to the highest international safety standards!
- Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
- EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
- EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
- EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
- EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.2 x 18.4 x 43 cm |
|---|---|
| General : Weight (kg) | 15.2 |
| General : Color | black |
| Stand & Truss : tube Ø | No |
| Stand & Truss : truss type | other |
| Brand | BRITEQ |
| EANCode | 5420025670050 |
Manual & Downloads
Manual & Downloads
 RICO-V8 Mk2 - Manual EN Size: (1.41 MB) |
RICO-V8 Mk2 - Manual V1.1 English |
| RICO-V8 Mk2 - Manual NL Size: (1.14 MB) |
RICO-V8 Mk2 - Manual V1.1 Nederlands |
| RICO-V8 Mk2 - Manual FR Size: (1.22 MB) |
RICO-V8 Mk2 - Manual V1.1 Français |
| RICO-V8 Mk2 - Manual DE Size: (1.2 MB) |
RICO-V8 Mk2 - Manual V1.1 Deutsch |
| RICO-V8 Mk2 - EU Declaration Size: (446.43 KB) |
RICO-V8 Mk2 - EU Declaration of Conformity |
| RICO-V8_MK2 PDF leaflet Deutsch Size: (912.28 KB) |
PDF_LEAFLET_RICO-V8_MK2_B07005_de.pdf |
| RICO-V8_MK2 PDF leaflet English Size: (912.51 KB) |
PDF_LEAFLET_RICO-V8_MK2_B07005_en.pdf |
| RICO-V8_MK2 PDF leaflet Français Size: (910.52 KB) |
PDF_LEAFLET_RICO-V8_MK2_B07005_fr.pdf |
| RICO-V8_MK2 PDF leaflet Nederlands Size: (907.44 KB) |
PDF_LEAFLET_RICO-V8_MK2_B07005_nl.pdf |
