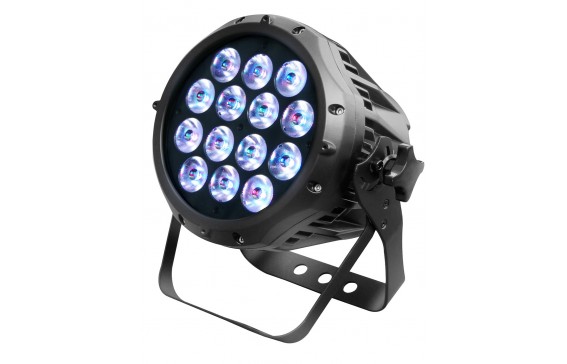

- Very powerful RGB LED projector (3200lux @ 2m) based on 14 tri-color 3W LEDs:
- Unwanted RGB shadows are completely eliminated
- Perfect and evenly spread color mixing, even at short range.
- Beam angle: 16°
- This LED projector is your first choice :To light up small, medium and large stages but also perfect for architectural lighting.
- Perfect alternative for traditional PAR64 projectors: only 52Watt power consumption at full output and no need for heavy dimmer packs!
- The use of LED Technology makes important energy (cost) savings possible compared to units based on halogen lamps!
- Different DMX operation modes:
- 3 channel HSV-control (hue, saturation, value)
- 3 channel RGB-control
- 4 channel RGB + dim
- 5 channel RGB + dim + strobe
- 11 channel TOUR-control (RGB, incl. color macros, dimmer speed, automatic programs, strobe, …)
- Thanks to all kinds of special features this projector is the choice of professional light designers:
- Color temperature presets 3200K ~ 10.000K
- White & RGB Calibration
- Different dimmer curves
- ID-addressing
- Neutrik PowerCon input/output (max. 24 units)
- 3pin DMX input/output
- Recall custom programs by DMX
- Menu driven LED-display with password protection on the rear panel
- Tempered glass lens protection
- The 400Hz LED scan rate makes it also a perfect choice in TV studios (no interferences with TV-cameras)
- Completely silent: the projector is cooled by natural air convection so no noisy fans are needed!
- The lightweight aluminium housing uses a double hanging bracket so it can also be used as floor projector.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 24.5 x 20.5 x 24.5 cm |
|---|---|
| General : Weight (kg) | 4.96 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 52 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 11 |
| Light : lamp socket | none |
| Light : Lux | 150 |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3200 |
| Light : max. color temperature (K) | 10000 |
| Light : colors | Red, Green, Blue |
| Light : mix colors | Yes |
| Light : functions | N/A |
| Light : min. beam angle (°) | 16 |
| Light : max. beam angle (°) | 16 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | BRITEQ |
| EANCode | 5420025643351 |
Manual & Downloads
Manual & Downloads
 STAGE BEAMER RGB Manual Size: (3.28 MB) |
|
| STAGE BEAMER RGB EC declaration Size: (566.83 KB) |
