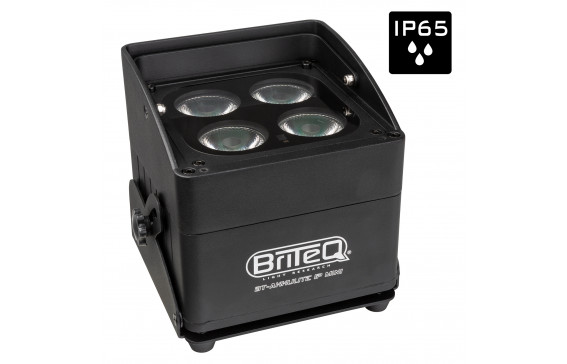

BT-AKKULITE IP MINI

Battery operated outdoor (IP65) LED-projector, based on 4pcs 10Watt RGBWA-LEDs
SKU: B05168
EANCODE: 5420025651684

Details

Details

  • Battery operated outdoor LED-projector, based on 4pcs 10Watt RGBWA-LEDs.
  • Beam angle = 17°
  • Projection angle can be adjusted over 25° (vertical to horizontal).
  • Outdoor use: IP65 rating.
  • The perfect solution for outdoor applications: garden parties, outdoor events, light up trees, plants, walkways, ...
  • +/-15hrs use in fading mode on a fully charged battery in EnEy!
  • Each projector is equipped with a wireless transceiver module (transmitter and receiver) which is 100% compatible with the W-DMX G4-protocol from “Wireless Solution Sweden”.
  • Projector can still be used with empty battery: just connect it to the mains!
  • Very smooth RGBWA color changes thanks to high freq. dimming electronics.
  • The external battery charger charges the battery while the projector is working on mains power.
  • Different working modes:
    • Standalone: custom colors selectable or automatic and beat synchronized color changes
    • Master/slave mode: wonderful preprogrammed, music synchronized lightshows
    • DMX-controlled : wireless (5 modes : 4-5-9-10 channels, LEDCON-02 Mk2)
    • Controlled by a small JB Systems LEDCON-02 Mk2 or LEDCON-XL controller
    • Controlled by the included wireless IR remote control

NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).

Technical Specifications

Technical Specifications

General : Dimensions (cm) 16.7 x 13.8 x 15
General : Weight (kg) 2.7
General : Powerinput AC 100 - 240V, 50/60Hz
General : Works on battery yes
General : Energy Label No
General : Power consumption W 40
General : Color black
General : Display LED
General : IP rating outdoor
Control : Modes standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave
Control : Protocol Wireless DMX
Control : Type included remote IR Remote
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels 4
Control : maximum DMX channels 10
Light : lamp socket No
Light : Lux 369 (@5m beam 17°)
Light : lamp LED
Light : colors Amber, RGBWA
Light : mix colors Yes
Light : min. beam angle (°) 17
Light : max. beam angle (°) 25
Light : max. refresh rate (kHz) No
Brand BRITEQ
EANCode 5420025651684
