Details
Details

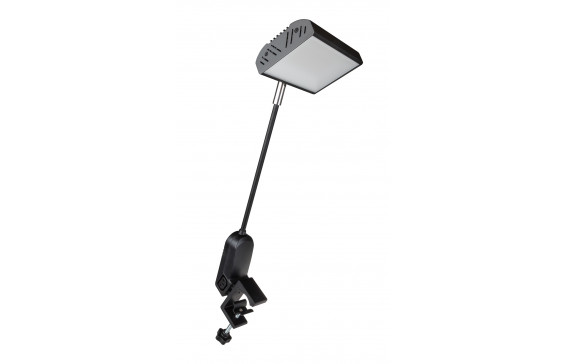

- Stylish lighting for exhibition booths, showrooms, ...
- Selectable color temperature (CCT), fits any type of booth:
- 3000K for a cozy atmosphere, perfect for stands with furniture, bedrooms, ...
- 4000K for a clean atmosphere, perfect for stands with bathrooms, kitchens, ...
- 5600K provides freshness on stands with jewelry etc.
- Very easy to mount on ALU truss and vertical walls of stands (clamp included)
- Integrated 100-240Vac power supply with IEC power in/out: very easy to link up to 15 projectors!
- Power link cables optionally available: 1m, 3m, 5m
- Replaces the old energy-consuming 300W halogen lamps:
- +/-10x less consumption (less electricity cost!)
- Same light output
- Much lower heat production
- Beam angle: 120° (luminous flux: +/-3800lm)
- Perfect solution for rental and fixed installation in showrooms
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | See drawing |
|---|---|
| General : Weight (kg) | 0.8 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 35 |
| General : Color | black |
| General : Display | none |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual |
| Control : programmable | No |
| Control : upgradable software | No |
| Light : lamp socket | No |
| Light : lumen output max (lm) | 3800 |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3000 |
| Light : max. color temperature (K) | 5600 |
| Light : CRI | 85 |
| Light : colors | White cold, White warm, White natural |
| Light : mix colors | No |
| Light : min. beam angle (°) | 120 |
| Light : max. beam angle (°) | 120 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | IEC |
| Connections : output | IEC |
| Brand | BRITEQ |
| EANCode | 5420025651967 |
