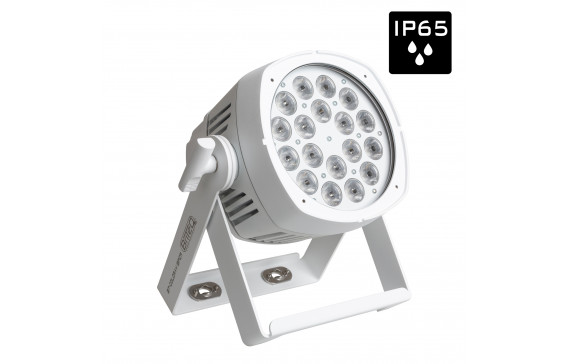

- This stylish 18x8W RGBW projector with a 20° beam angle is a very powerful tool for all kinds of events (stage, TV-show, exhibition boots, architectural lighting,…)
- IP65 rating
- Three different DMX-modes: 4, 6 and 7 channels
- RDM-functionality for easy remote setup: DMX addressing, channel mode, …
- The LCD-display assures easy navigation in the different setup menus
- TV-Studio ready: flicker free 1200Hz LED refresh rate
- Selectable lamp behavior: halogen lamp (slow) or led (fast)
- Four dimmer curves: linear, square, inverse square, S-curve
- In case of DMX failure you can choose between blackout and freeze mode
- Lock function to avoid unwanted altering of the settings
- White balance adjustment to perfectly match the colors of several projectors
- Default factory settings + user settings can be saved/loaded
- 3pin DMX in/outputs and Neutrik® TRUE1 PowerCON® in/outputs for easy daisy chaining
- Optional modification kit available to modify IP 3pin XLR to 5pin
- IP-Fan cooling for longer LED life
NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater)
Technical Specifications
Technical Specifications
| General : Weight (kg) | 5.28 |
|---|---|
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 123 |
| General : Color | white |
| General : Display | touchscreen |
| General : Fixation | optional omega bracket |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 4 |
| Control : maximum DMX channels | 7 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, White, RGBW |
| Light : mix colors | Yes |
| Light : min. beam angle (°) | 20 |
| Light : max. beam angle (°) | 20 |
| Light : max. refresh rate (kHz) | 1.2 |
| Connections : input | 3 pin XLR, rdm, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, rdm, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025655804 |
Manual & Downloads
Manual & Downloads
 BT-COLORAY 18FCR - Manual EN Size: (1.66 MB) |
BT-COLORAY 18FCR - Manual EN |
| BT-COLORAY 18FCR - Manual DE Size: (1.86 MB) |
BT-COLORAY 18FCR - Manual DE |
| BT-COLORAY 18FCR - Manual FR Size: (1.66 MB) |
BT-COLORAY 18FCR - Manual FR |
| BT-COLORAY 18FCR - Manual NL Size: (1.62 MB) |
BT-COLORAY 18FCR - Manual NL |
| BT-COLORAY 18FCR - Manual ES Size: (1.63 MB) |
BT-COLORAY 18FCR - Manual ES |
| BT-COLORAY 18FCR - EC Declaration Size: (232.54 KB) |
BT-COLORAY 18FCR - EC Declaration of Conformity |
 BT-COLORAY 18FCR - Firmware V1.03 Size: (209.59 KB) |
BT-COLORAY 18FCR - Firmware V1.03 (2021-10-19) |
| BT-COLORAY series - Chromateq Profile Size: (715 Bytes) |
BT-COLORAY series - Chromateq Profile |
 Fixture files - GDTF - BT-COLORAY 18FCR |
|
| Fixture files - CHAMSYS |
| BT-COLORAY_18FC PDF leaflet Deutsch Size: (993.61 KB) |
PDF_LEAFLET_BT-COLORAY_18FC_B05580_de.pdf |
| BT-COLORAY_18FC PDF leaflet English Size: (998.83 KB) |
PDF_LEAFLET_BT-COLORAY_18FC_B05580_en.pdf |
| BT-COLORAY_18FC PDF leaflet Français Size: (991.76 KB) |
PDF_LEAFLET_BT-COLORAY_18FC_B05580_fr.pdf |
| BT-COLORAY_18FC PDF leaflet Nederlands Size: (991.41 KB) |
PDF_LEAFLET_BT-COLORAY_18FC_B05580_nl.pdf |
