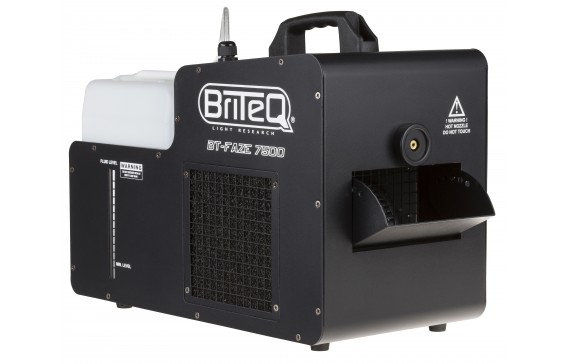

- High Performance Fazer effect machine.
- The built-in turbine ensures a powerful dissipation of the smoke.
- Adjustable fog output and fan speed:
- via 2 DMX channels
- via the on board control panel with timer - Continuous output is possible
- Extremely reliable thanks to the self-cleaning system
- Removable 5L fluid tank
- Fluid cap with Quick lock connector
- To be used with Briteq BT-FOGLIQ5 PRO
- 5-pin and 3-pin DMX connectors for input and output
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 49x23x33 |
|---|---|
| General : Weight (kg) | 12 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 1200 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone timer, DMX |
| Fx : liquid type | Smoke |
| Fx : output cu.ft. / min. | 7500 |
| Fx : tank capacity in L | 5 |
| Connections : input | 3 pin XLR, 5 pin XLR, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025648516 |
Manual & Downloads
Manual & Downloads
 BT-FAZE 7500 - Manual V1.0 NL Size: (853.74 KB) |
BT-FAZE 7500 - Manual V1.0 Nederlands |
| BT-FAZE 7500 - Manual V1.0 FR Size: (893.02 KB) |
BT-FAZE 7500 - Manual V1.0 Français |
| BT-FAZE 7500 - Manual V1.0 DE Size: (875.36 KB) |
BT-FAZE 7500 - Manual V1.0 Deutsch |
| BT-FAZE 7500 - Manual V1.0 ES Size: (861.02 KB) |
BT-FAZE 7500 - Manual V1.0 Español |
| BT-FAZE 7500 - Manual V1.0 EN Size: (945.34 KB) |
BT-FAZE 7500 - Manual V1.0 English |
| BT-FAZE 7500 - Manual V2.0 EN Size: (1.98 MB) |
BT-FAZE 7500 - Manual software V2.0 - English |
| BT-FAZE 7500 - Manual V2.0 FR Size: (1.94 MB) |
BT-FAZE 7500 - Manual software V2.0 - Français |
| BT-FAZE 7500 - Manual V2.0 NL Size: (1.91 MB) |
BT-FAZE 7500 - Manual software V2.0 - Nederlands |
| BT-FAZE 7500 - Manual V2.0 DE Size: (1.93 MB) |
BT-FAZE 7500 - Manual software V2.0 - Deutsch |
| BT-FAZE 7500 - Manual V2.0 ES Size: (1.92 MB) |
BT-FAZE 7500 - Manual software V2.0 - Español |
| BT-FAZE 7500 - EC Declaration Size: (448.17 KB) |
BT-FAZE 7500 - EC Declaration of Conformity |
 BT-FAZE 7500 - Chromateq Fixture File 2ch Size: (653 Bytes) |
BT-FAZE 7500 - Chromateq Fixture File 2ch |
| BT-FAZE_7500 PDF leaflet Deutsch Size: (1.11 MB) |
PDF_LEAFLET_BT-FAZE_7500_B04851_de.pdf |
| BT-FAZE_7500 PDF leaflet English Size: (1.11 MB) |
PDF_LEAFLET_BT-FAZE_7500_B04851_en.pdf |
| BT-FAZE_7500 PDF leaflet Français Size: (1.11 MB) |
PDF_LEAFLET_BT-FAZE_7500_B04851_fr.pdf |
| BT-FAZE_7500 PDF leaflet Nederlands Size: (1.11 MB) |
PDF_LEAFLET_BT-FAZE_7500_B04851_nl.pdf |
