Details
Details

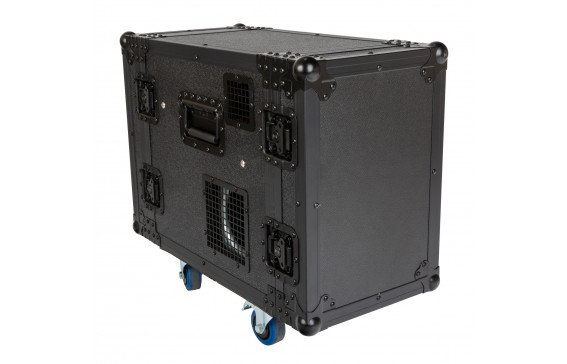

- High Performance Fazer effect machine in strong touring flight case!
- Ready for easy use on the road: simply remove the front and back covers, plug it in, and you're ready to go
- Uses normal smoke fluid 5L canisters
- The large internal turbine ensures powerful and low-noise smoke dispersion
- Adjustable air deflector for smoke direction
- Lockable wheel set
- Adjustable fan speed and fog output:
- Standalone
- DMX controlled
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE
- 3-pin and 5- pin DMX connectors
- Strapped canister for safe transport
- Removable covers with Penn-Elcom® butterfly latches
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 66 x 30 x 61 |
|---|---|
| General : Weight (kg) | 34 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 2200 |
| General : Color | black |
| General : Display | No |
| Control : Modes | standalone fixed, standalone timer, DMX |
| Control : minimum DMX channels | 2 |
| Control : maximum DMX channels | 2 |
| Fx : liquid consumption | 1-42 ml/min |
| Fx : liquid type | Smoke |
| Fx : output cu.ft. / min. | 20 000 cubic ft/min |
| Fx : tank capacity in L | 5 L |
| Connections : input | 3 pin XLR, 5 pin XLR, wireless DMX optional, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, wireless DMX optional, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025647731 |
Manual & Downloads
Manual & Downloads
 BT-TOURFAZER - Manual EN Size: (2.25 MB) |
BT-TOURFAZER - Manual English |
| BT-TOURFAZER - Manual FR Size: (2.5 MB) |
BT-TOURFAZER - Manual Français |
| BT-TOURFAZER - Manual NL Size: (2.48 MB) |
BT-TOURFAZER - Manual Nederlands |
| BT-TOURFAZER - Manual DE Size: (2.5 MB) |
BT-TOURFAZER - Manual Deutsch |
| BT-TOURFAZER - Manual ES Size: (2.5 MB) |
BT-TOURFAZER - Manual Español |
| BT-TOURFAZER - Manual IT Size: (2.48 MB) |
BT-TOURFAZER - Manual Italiano |
| BT-TOURFAZER leaflet DE Size: (1.23 MB) |
PDF_LEAFLET_BT-TOURFAZER_B04773_de.pdf |
| BT-TOURFAZER leaflet EN Size: (1.23 MB) |
PDF_LEAFLET_BT-TOURFAZER_B04773_en.pdf |
| BT-TOURFAZER leaflet FR Size: (1.23 MB) |
PDF_LEAFLET_BT-TOURFAZER_B04773_fr.pdf |
| BT-TOURFAZER leaflet NL Size: (1.23 MB) |
PDF_LEAFLET_BT-TOURFAZER_B04773_nl.pdf |
