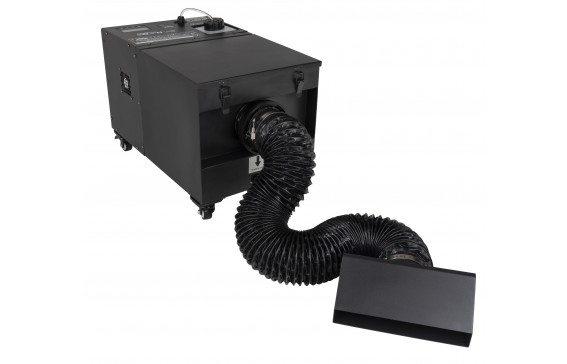

- Ultrasonic 1250W Low Fog machine.
- The powerful ultrasonic element convert the combination of smoke fluid and water into a large amount of beautiful low-lying fog.
- Perfect for covering areas of up to 80m² with thick ground fog.
- No more hassle with expensive and hard to find CO2 dry ice !
- The black hose is equipped with a “fast click-on" system to significantly reduce installation time!
- Adjustable fog output and fan speed:
- Via 2 DMX channels
- Via the on board control panel with LCD-display and timer
- Stainless steel “304” water tank (instead of ordinary treated iron) to avoid rust!
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code: B04645)
- Original Neutrik® PowerCON and 3-pin DMX connectors for input and output
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 57 x 32 x 40 cm |
|---|---|
| General : Weight (kg) | 17 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 1250 |
| General : Color | black |
| General : Display | LCD |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone timer, manual, DMX |
| Control : maximum DMX channels | 2 |
| Fx : liquid type | Smoke |
| Fx : tank capacity in L | 1 |
| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025649001 |
Manual & Downloads
Manual & Downloads
 BT-H2FOG COMPACT - Manual EN Size: (1.26 MB) |
BT-H2FOG COMPACT - Manual English |
| BT-H2FOG COMPACT - Manual NL Size: (1.22 MB) |
BT-H2FOG COMPACT - Manual Nederlands |
| BT-H2FOG COMPACT - Manual FR Size: (1.22 MB) |
BT-H2FOG COMPACT - Manual Français |
| BT-H2FOG COMPACT - Manual DE Size: (1.22 MB) |
BT-H2FOG COMPACT - Manual Deutsch |
| BT-H2FOG COMPACT - EC Declaration Size: (226.06 KB) |
BT-H2FOG COMPACT - EC Declaration of Conformity |
 BT-H2FOG series - Chromateq Fixture File 1ch Size: (621 Bytes) |
BT-H2FOG series - Chromateq Fixture File 1ch |
| BT-H2FOG_COMPAC PDF leaflet Deutsch Size: (1003.75 KB) |
PDF_LEAFLET_BT-H2FOG_COMPAC_B04900_de.pdf |
| BT-H2FOG_COMPAC PDF leaflet English Size: (1003.28 KB) |
PDF_LEAFLET_BT-H2FOG_COMPAC_B04900_en.pdf |
| BT-H2FOG_COMPAC PDF leaflet Français Size: (1004.11 KB) |
PDF_LEAFLET_BT-H2FOG_COMPAC_B04900_fr.pdf |
| BT-H2FOG_COMPAC PDF leaflet Nederlands Size: (1002.87 KB) |
PDF_LEAFLET_BT-H2FOG_COMPAC_B04900_nl.pdf |
