Details
Details

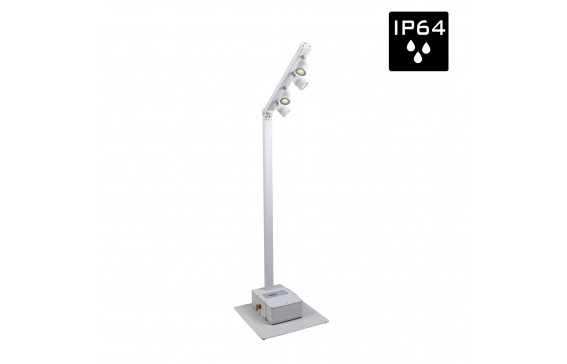

- Stylishly designed battery-powered lighting pole with great autonomy.
- The ultimate IP64 OUTDOOR upgrade of our highly successful BT-AKKUPOLE: no more stress if a sudden rain shower hits!
- The perfect tool for illuminating outdoor events, buffets, presentation counters, etc.
- Equipped with 4 pivoting 5 watt 25° LED projectors (3000K & CRI>90).
- The sturdy swivel arm with projectors can be set in 6 fixed positions.
- Lightning-fast assembly/disassembly without any tools.
- Sturdy construction quality with adjustable height for frequent and versatile use in rental jobs.
- The supplied heavy base (45x37cm) ensures very high stability, even at maximum height.
- Equipped with magnetic filter holders for the use of all kinds of filters:
- CTO/CTB filters: adjust CCT to e.g. 4000K, 2700K, ...
- Color filters: choose any color imaginable
- Frost filters: adjust beam angle
- Clear and very easy user interface.
- 3 touch buttons and clear LCD screen with information about remaining battery time.
- Multiple operating modes:
- Built-in wireless DMX receiver (with XLR output: can serve as W-DMX receiver)
- Wired DMX control via XLR in/out (1 dimming channel)
- Simple manual operation on the base
- High-capacity lithium batteries (288Wh) for extended autonomy (>14.5 hours at 100% output).
- Internal processor-controlled battery charger with IP65 in/output power connectors.
- The standard waterproof XLR 3pin in/out connectors can be changed to XLR 5pin in/out.
- Available in both BLACK and WHITE version: adapts perfectly to any venue!
- Works perfectly on mains power as well (batteries are recharged during use).
- Professional flight case (120x60cm) optionally available for transport of 4 complete sets.
NOTE: this product has IP64 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | see picture |
|---|---|
| General : Weight (kg) | 25 |
| General : Powerinput | AC 100 - 240V, 50/60Hz, Battery |
| General : Works on battery | yes |
| General : Energy Label | No |
| General : Power consumption W | 69 |
| General : Color | white |
| General : Display | LCD |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 1 |
| Control : maximum DMX channels | 1 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3200 |
| Light : max. color temperature (K) | 3200 |
| Light : CRI | 90 |
| Light : colors | White warm |
| Light : mix colors | No |
| Light : min. beam angle (°) | 25 |
| Light : max. beam angle (°) | 50 |
| Light : max. refresh rate (kHz) | 4.3 |
| Connections : input | 3 pin XLR, wireless DMX, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, wireless DMX, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025651868 |
Manual & Downloads
Manual & Downloads
 BTI-AKKUPOLE - Manual EN Size: (1.87 MB) |
BTI-AKKUPOLE - Manual V1.1 English |
| BTI-AKKUPOLE - Manual FR Size: (1.64 MB) |
BTI-AKKUPOLE - Manual V1.1 Français |
| BTI-AKKUPOLE - Manual NL Size: (1.62 MB) |
BTI-AKKUPOLE - Manual V1.1 Nederlands |
| BTI-AKKUPOLE - Manual DE Size: (1.65 MB) |
BTI-AKKUPOLE - Manual V1.1 Deutsch |
| BTI-AKKUPOLE - Manual ES Size: (1.64 MB) |
BTI-AKKUPOLE - Manual V1.1 Español |
| BTI-AKKUPOLE - EU Declaration Size: (453.93 KB) |
BTI-AKKUPOLE - EU Declaration of Conformity |
| BTI-AKKUPOLE_WH PDF leaflet Deutsch Size: (996.59 KB) |
PDF_LEAFLET_BTI-AKKUPOLE_WH_B05186_de.pdf |
| BTI-AKKUPOLE_WH PDF leaflet English Size: (999.01 KB) |
PDF_LEAFLET_BTI-AKKUPOLE_WH_B05186_en.pdf |
| BTI-AKKUPOLE_WH PDF leaflet Français Size: (995.88 KB) |
PDF_LEAFLET_BTI-AKKUPOLE_WH_B05186_fr.pdf |
| BTI-AKKUPOLE_WH PDF leaflet Nederlands Size: (995.17 KB) |
PDF_LEAFLET_BTI-AKKUPOLE_WH_B05186_nl.pdf |
