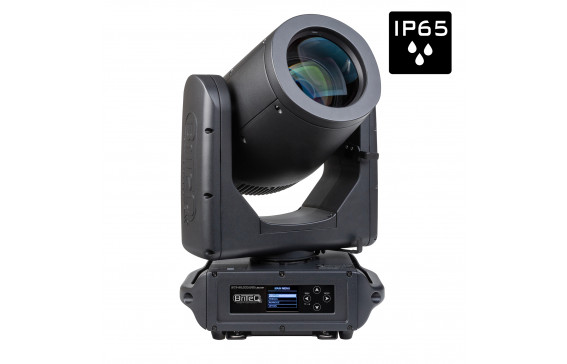

- BTI-BLIZZARD LBEAM is a powerful compact BEAM moving head, based on a 100W white LEP LASER module.
- IP65 protection and low noise operation: perfect for both outdoor and indoor use!
- Narrow beam from 0.5° to 1.6°!
- Silent fan mode for theater applications.
- Fast 16bit pan/tilt movements with position correction and continuous pan movement.
- CMY color system, including several color macros and 19+1 fixed colors.
- 12+1 replaceable rotating metal gobos with fine indexing.
- Combinable 5L and 24C facet prisms.
- Frost filter for a soft beam effect.
- Accurate strobe with built in random burst effects.
- Smooth 24bit dimmer with fast and slow dimming mode.
- Uses 19, 23 or 25 DMX channels + RDM-functionality for easy remote setup.
- Optional wireless DMX-receiver: W-DMX / CRMX compatible.
- The matrix LCD-display assures easy navigation in the different setup menus.
- 3pin & 5pin DMX in/outputs + PowerCON TRUE1 compatible in/outputs.
- Equipped with omega brackets for fast installation.
NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 51.6 (H) x 33 x 24.4 |
|---|---|
| General : Weight (kg) | 19 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 150 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | included omega bracket |
| General : IP rating | indoor, outdoor |
| Control : Modes | standalone fixed, standalone automatic, manual, DMX |
| Control : Protocol | DMX, Wireless DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 19 |
| Control : maximum DMX channels | 25 |
| Light : lamp socket | No |
| Light : Lux | 1311130 @5m ( beam 0.5° ) |
| Light : lumen output max (lm) | 56000 |
| Light : lamp | LEP – Laser Emitted |
| Light : CRI | 73 |
| Light : colors | White, CMY |
| Light : mix colors | Yes |
| Light : functions | motorized focus, motorized frost, 5 facet linear prism, 24 facet round prism |
| Light : rotating gobos | 12 |
| Light : zoomrange | 0.5° - 1.6° |
| Light : max. refresh rate (kHz) | 25 |
| Connections : input | 3 pin XLR, 5 pin XLR, wireless DMX optional, rdm, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, rdm, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025655842 |
