Details
Details

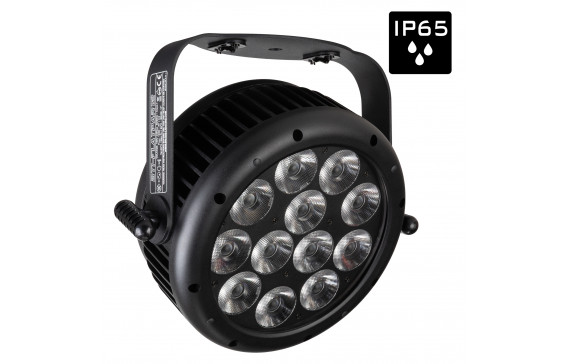

- This flat outdoor IP65-projector is equipped with 12pcs 20W RGBAL+UV
- A powerful workhorse that can be used for different applications!
- Standard 17° beam with 2050lux @ 5m and more than 6000lm!
- The wireless transceiver (transmitter + receiver) is 100% compatible with the W-DMX G4S protocol.
- Very smooth RGBAL color changes + extra UV for special effects!
- Different working modes for maximum flexibility:
- Standalone: custom colors, color + CCT presets or automatic color changes
- Master/slave mode: the master controls the slaves wirelessly or via XLR cabling, creating wonderful light shows
- DMX-controlled: wired and wireless, 5 modes:
- 2 channel: Dim + col/cct presets
- 3 channel: HSV (Hue, Saturation, Value)
- 7 channel: Separate colors + master
- 10 channel: Separate colors + master + strobe + col/cct presets + control
- 12 channel: 10 channel mode + color chases
- Graphic OLED display with the touch keys for smooth operation of the setup menu.
- Silent but effective cooling with 2 fans.
- Sturdy yet elegant mounting bracket:
- Thanks to its width, the projector can be placed on the floor as an uplighter
- Easy truss mounting with traditional M10/M12 hanging clamps or quick release omega brackets
- PowerCON TRUE1 compatible Seetronic mains in- and output for easy daisy chaining.
- The standard weatherproof 5-pin XLR in- and output connectors can be easily converted in 3-pin XLR with the optional conversion kit “BT-XLR5TO3 COMBIKIT”.
NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 28 (H) x 30.5 x 14.2 |
|---|---|
| General : Weight (kg) | 5.3 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 200 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | optional omega bracket |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 12 |
| Light : lamp socket | No |
| Light : Lux | 2494 @5m ( beam 17° ) |
| Light : lumen output max (lm) | 6755 |
| Light : lamp | LED |
| Light : min. color temperature (K) | 2500 |
| Light : max. color temperature (K) | 6000 |
| Light : CRI | 82 |
| Light : colors | UV, RGBAL |
| Light : mix colors | Yes |
| Light : zoomrange | 16.7° |
| Light : max. refresh rate (kHz) | 20 |
| Connections : input | 5 pin XLR, wireless DMX, PowerCon® TRUE1 or compatible |
| Connections : output | 5 pin XLR, wireless DMX, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025656009 |
