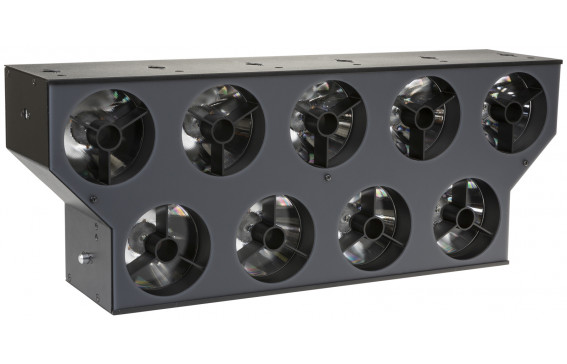

BT-NONABEAM - BQ1

Mit diesem äußerst leistungsstarken Bühnenprojektor, der mit 9 Stück 60W CW/WW-LEDs in Kombination mit erstaunlichen RGB-Glüheffekten ausgestattet ist, können Sie dynamische Lichtvorhangseffekte erzeugen
Artikelnummer: B05513
EANCODE: 5420025655132

Artikelbeschreibung

Details

  • Dieser eindrucksvolle neue Projektor wurde für den Einsatz auf großen Konzertbühnen und in TV-Studios entwickelt,
  • Die 9 großen Linsen sind jeweils mit 60 W CW/WW-LEDs bestückt, die starke, schmale weiße 4°-Strahlen erzeugen. (voll auf: 175.000 Lux in 3 m)
  • In kürzester Zeit können mehrere Projektoren mechanisch miteinander verbunden werden, um dynamische „Lichtvorhang-Effekte“ mit unübertroffener Leistung zu erzeugen!
  • Die LEDs können einzeln angesteuert werden, um einstellbare weiße Strahlen zu erzeugen, die von warm 3000K mit hohem CRI bis 6000K kaltweiß reichen.
  • Sehr leistungsstarke RGB-LEDs beleuchten die schwarze Frontplatte in jeder gewünschten Farbe.
  • Die Geräte verfügen über 2 zusätzliche Frontplatten, die einfach ausgetauscht werden können:
    • Die weiße Frontplatte wird verwendet, um sehr helle und gesättigte RGB „Glow-Effekte“ zu erzeugen.
    • Die halbdurchlässige „Spiegel-Frontplatte“ erzeugt erstaunliche kreative Effekte, indem sie einfach Laser und Lichtstrahlen auf sie richten.
  • Die 9 Linsen sind mit schwarzen Blendschutzlamellen ausgestattet, optional sind goldfarbene Lamellen erhältlich.
  • Verschiedene DMX-Modi:
    • 13 Kanäle: Einfach zu bedienender Modus, schnelle Einrichtung mit 16-Bit Kalt-/Warmweiß-Steuerung für alle Strahlen zusammen.
    • 29 Kanäle: Individuelle Steuerung aller Strahlen und Funktionen über 8-Bit-Dimmung
    • 45 Kanäle: Individuelle Steuerung aller Strahlen und Funktionen durch 16-Bit-Dimmung
  • Steuerkanal zur Fernauswahl von PIXEL-Reihenfolge, Dimmgeschwindigkeit, Dimmkurve, Lüftersteuerung,
  • RDM-Funktion für: Kanalbetrieb, DMX-Adresse, Temperaturregelung,
  • OLED-Display mit hintergrundbeleuchteten Tasten zur einfachen Konfiguration.
  • Einfache mechanische Montage mit 2 mitgelieferten Omega-Halterungen.
  • Leicht abnehmbare Aufhängung mit Schnellverschlüssen.
  • Mehrere M10-Befestigungspunkte können verwendet werden, um die Projektoren in kundenspezifische Rahmen einzubauen.
  • Sehr geräuscharme Lüfter, ideal für den Einsatz in geräuschsensiblen Bereichen wie Theatern oder Fernsehstudios.
  • Einfache Reihenschaltung: 3-poliger und 5-poliger+ Neutrik® PowerCON® TRUE-1 Eingang/Ausgang
  • Kompakte Größe: 58 x 22 x 14 cm für einfachen Transport in Flightcases!
  • 100 V - 240 V 50/60 Hz Stromversorgung mit automatischer 6-A-Sicherung.
  • Optional sind 60 x 120 cm Flightcases (4 Projektoren) erhältlich.

Technische Daten

Technische Daten

Allgemein : Abmessung (cm) 58 x 22 x 14cm (without bracket)
Allgemein : Gewicht (kg) 16
Allgemein : Netz/Batterie AC 100 - 240V, 50/60Hz
Allgemein : Energie-label Nein
Allgemein : Farbe schwarz
Allgemein : Schirm OLED
Allgemein : Fixierung included omega bracket
Allgemein : IP rating indoor
Kontrolle : Modi DMX, Master/Slave
Kontrolle : Protokoll DMX, RDM
Kontrolle : programmierbar Nein
Kontrolle : aktualisierbare software Ja
Kontrolle : mindestens DMX-Kanäle 13
Kontrolle : maximale DMX-kanäle 45
Light : lamp socket Nein
Licht : lampe LED
Licht : min. farbtemperatur (K) 3000
Licht : max. farbtemperatur (K) 6000
Licht : farben Weiß, Kalt weiß, Warm weiß, RGB, RGBW
Licht : farben mischen Ja
Licht : min. strahlwinkel (°) 4
Licht : max. strahlwinkel (°) 4
Licht : max. Wiederholfrequenz (kHz) 1.2
Anschluß : eingang 3 pin XLR, 5 pin XLR, rdm, PowerCon® TRUE1 or compatible
Anschluß : ausgang 3 pin XLR, 5 pin XLR, PowerCon® TRUE1 or compatible
Brand BRITEQ
EANCode 5420025655132

Bedienungsanleitung & Downloads

Bedienungsanleitung & Downloads

View FileBT-NONABEAM - Manual EN    Size: (2.09 MB) BT-NONABEAM - Manual English
View FileBT-NONABEAM - Manual NL    Size: (1.75 MB) BT-NONABEAM - Manual Nederlands
View FileBT-NONABEAM - Manual FR    Size: (1.76 MB) BT-NONABEAM - Manual Français
View FileBT-NONABEAM - Manual DE    Size: (1.78 MB) BT-NONABEAM - Manual Deutsch
View FileBT-NONABEAM - Manual ES    Size: (1.75 MB) BT-NONABEAM - Manual Español
View FileBT-NONABEAM - EC Declaration    Size: (230.87 KB) BT-NONABEAM - EC Declaration of Conformity
View FileBT-NONABEAM - Firmware V1.04    Size: (276.87 KB) BT-NONABEAM - Firmware V1.04 (2020-04-27) needed for BT-NONAMOVE
View FileBT-NONABEAM - Firmware V1.03    Size: (239.6 KB) BT-NONABEAM - Firmware V1.03 (2018-05-12)
View FileBT-NONABEAM - DMX Chart    Size: (357.83 KB) BT-NONABEAM - DMX Chart (firmware V1.03)
View FileBT-NONABEAM - CAD-files for light designers    Size: (1.46 MB) BT-NONABEAM - CAD-files for light designers
View FileBT-NONABEAM – FIXTURE for GrandMA2    Size: (15.9 KB) BT-NONABEAM – FIXTURE for GrandMA2
View FileBT-NONABEAM – FIXTURE d4 for AVOLITES    Size: (43.92 KB) BT-NONABEAM – FIXTURE d4 for AVOLITES
BT-NONABEAM - Review SoundLightUp magasineBT-NONABEAM - Review SoundLightUp magasine   Size: (1.92 MB) BT-NONABEAM - Review SoundLightUp - French/Français
View FileBT-NONABEAM PDF leaflet English    Size: (1.6 MB) PDF_LEAFLET_BT-NONABEAM_05513_en.pdf
View FileBT-NONABEAM_-_B PDF leaflet Deutsch    Size: (1.6 MB) PDF_LEAFLET_BT-NONABEAM_-_B_05513_de.pdf
View FileBT-NONABEAM_-_B PDF leaflet English    Size: (1.6 MB) PDF_LEAFLET_BT-NONABEAM_-_B_05513_en.pdf
View FileBT-NONABEAM_-_B PDF leaflet Français    Size: (1.6 MB) PDF_LEAFLET_BT-NONABEAM_-_B_05513_fr.pdf
View FileBT-NONABEAM_-_B PDF leaflet Nederlands    Size: (1.6 MB) PDF_LEAFLET_BT-NONABEAM_-_B_05513_nl.pdf

Kundenmeinungen

Kundenmeinungen (2)

Dossier BT-NONABEAMKundenmeinung von SoundLightUp
Briteq BT-NONABEAM, exercice de style sur le thème du « Svoboda »

Le bien connu projecteur aussi singulier qu’exceptionnel inventé par le célèbre scénographe tchèque Josef Svoboda a été souvent source d’inspiration aussi bien pour les éclairagistes que pour les fabricants de matériel d’éclairage.
Souvent tout un tas d’options ont été imaginées pour apporter des facilités techniques à cet instrument assez spécial et parfois un peu tordu à utiliser. Le concept global a été repris par Briteq pour imaginer un projecteur moderne le BT-NONABEAM, avec les caractéristiques actuelles des projecteurs à leds en y apportant certaines nouveautés originales.

Présenté en avant-première lors du dernier Prolight + Sound et sorti récemment, le BT-NONABEAM n’est pas censé se substituer à un Svoboda classique dans le sens où ses caractéristiques de lumière et de gabarit sont différentes. Il en reprend la forme, et globalement les faisceaux très serrés, cette fameuse « herse » de lumière, mais dans un concept à leds qui a d’autres attraits. En termes de dimensions, cet appareil de 16 kg, est plus petit que son ancêtre ADB. Il mesure 58 cm de large contre un bon mètre pour le Svoboda original.

24 BT-NONABEAM commandés en faisceaux en blanc chaud et blanc froid.
Autre différence notoire, il est équipé d’inserts camlock sur le pourtour pour recevoir des omégas et la fixation d’un bracket d’accroche pouvant fournir une multitude d’orientations (ceux qui ont déjà déployé du Svoboda verseront une petite larme quand ils se souviendront de la peine qu’ils ont eue à disposer leurs « SVO » en bricolant avec de l’élingue…). Pour ce qui est de l’accroche, il y a plusieurs solutions possibles.
Déjà l’appareil est livré avec deux systèmes de fixation différents. Le premier est un gros étrier avec lyre orientable et réglable, équipé de deux omégas verrouillables par camlock et qui peut venir se fixer à l’arrière de l’appareil.

La face arrière avec les différentes faces avant, le grand bracket et son étrier.
Le deuxième est une paire de petits omégas libres, toujours avec les verrouillages camlock, sur lesquels on peut simplement fixer un clamp / crochet classique.</br>
Ce deuxième système permet de positionner les omégas dans une multitude de positions, sur le côté de l’appareil, sur le dos à différents endroits, mais également à cheval entre deux appareils assemblés.</br>
Car les BT-NONABEAM sont prévus pour être également utilisés « en ligne », collés les uns aux autres. Latéralement, des petits ergots métalliques assurent un raccordement (non solidaire) assez franc, pour « guider » l’assemblage. A signaler aussi, 6 inserts filetés, sur le dos et sur le côté de l’engin permettent de visser une mécanique qui servira d’accroche. Les nostalgiques, pourront y fixer un œillet à chaque coin pour suspendre leur BT-NONABEAM avec de l’élingue si ça les amuse !</br>
Pour ce qui est de la lumière, le luminaire dispose de deux armes bien distinctes. Les 9 faisceaux très concentrés sont générés chacun par une source led de 60 W (30 W de blanc froid 6000K, et 30 W de blanc chaud 3000K).</br>
Toujours concernant la lumière, la deuxième arme de cet engin se présente sous la forme d’un « fond » lumineux RGB qui habille toute la surface de l’appareil d’une couleur uniforme générée par 72 leds de 1 W. Cette colorisation crée un effet de rétroéclairage derrière les 9 faisceaux concentrés.</br>
</br>
Il est donc possible d’utiliser le BT-NONABEAM comme un projecteur, mais aussi comme un objet scénographique assez singulier, le faisant apparaître lumineux et coloré.</br>
</br>
La fonction rétroéclairage seule, sans faisceaux.</br>
La face avant est très modulable. L’appareil est livré avec deux plaques de face avant venant personnaliser son aspect. Conçu de base avec une façade noire, qui laisse cependant passer la lumière de l’effet de colorisation interne, il reçoit soit une plaque blanche translucide, soit une plaque « miroir », qui pour le coup ne laisse plus passer la lumière interne.</br>
</br>
Les différentes faces avant livrées avec l’appareil. Elles se glissent très simplement.</br>
L’échange de ces plaques est très simple. Il suffit d’enlever 3 petites vis, et de glisser la plaque dans un rainurage latéral, presque à la manière d’un porte gélatine sur un PC ou une découpe.</br>
Le contrôle de la machine s’effectue en DMX via 3 modes différents : 13, 29, ou 45 canaux. Dans tous les cas, le panneau RGB interne est géré sur un seul module RGB / dimmer / strobe, les autres modes permettent juste de gérer les 9 faisceaux de façon autonome en 2 canaux chacun, un pour le chaud, un pour le froid, pour le mode 29 canaux, et la même chose en 16 bits pour le mode 45 canaux (avec donc 4 canaux par faisceau). Dans tous les modes, une fonction strobe et un canal de macros permettent de générer des effets préprogrammés.</br>
L’adressage et l’accès aux fonctions se font par un petit menu display situé au dos de l’appareil et proposant quantité d’options, à commencer par différentes courbes de dimmer mais également des tas de choses plus avancées comme la possibilité d’ordonner de différentes façons les « pixels » composés par les faisceaux, permettant ainsi un raccordement facile pour réaliser du pixel-mapping avec des rangées ou des groupes de Nonabeam BQ-1.</br>
</br>
24 Nonabeam BQ-1 en faisceaux blanc froid avec module interne RGB en rouge.</br>
Question connectique, le panneau arrière dispose d’embases True1 pour l’alimentation, la sortie permettant d’en raccorder plusieurs sur la même alimentation, et de connecteurs entrée/sortie XLR3 et XLR5 pour le DMX.</br>
Cette petite machine tout à fait séduisante et originale offre de nouvelles possibilités de lumière avec un design familier à de nombreux éclairagistes, qui y verront pour certains une version modernisée et non sans un certain intérêt du fameux effet « Svoboda ».</br>
Pour d’autres, il s’agira d’un projecteur aux caractéristiques singulières offrant un nouvel outil dans leur palette de projecteurs.</br>
</br>
</br>
Posté le 24 janvier 2019 </br>
Texte & photos : Jocelyn Morel</br>
Lien vers le dossier : https://www.soundlightup.com/flash-and-news/briteq-bt-nonabeam-bq1-exercice-de-style-sur-le-thme-du-svoboda.html?fbclid=IwAR2oklV-rB_5b-C8Lfz37n3i5wOle0dPFSbpdCBLHAAOVMXVWO0LFSc74wU (Veröffentlicht am 24.01.2019)
TEST : BT-NONABEAM - Not another lighting fixtureKundenmeinung von WWW. INFOMUSIC.PL


---<<< INTRODUCTION >>>---

In a time when the market is flooded with lighting fixtures and it looks like each device has already been refined, Briteq decides to completely re-design one of the lighting-legends and introduces the successor of the SVOBODA : The BT-NONABEAM!

I had the opportunity to test this device in a life situation during the concert of Enej (www.enej.pl).
Despite my initial prejudice, it worked quite well when positioned on the ground with an upward angle, giving an amazing bright beam of light, filling the scene with interesting effects thanks to its individually controlled LEDs and front panel RGB glow effects.

---<<< FIRST IMPRESSIONS >>>---

The first thing that surprised me was its ... weight!
The BT-NONABEAM weighs 15 kilograms and it feels like well-made equipment.

The used materials and concept make it a very durable product for rentals.

Another thing that surprised everyone is it’s light output. With It’s 9 pieces of 60W CW/WW LEDs, you get a spectacular "light curtain" effect and interesting effects.
Words come up short… you have to see it to believe it!
But like every light device you need smoke the whole beam length to see it’s full potential. So it's worth planning your smoke properly.

The third thing that surprised me, will appeal to all light-designers and light programmers, is the arrangement of the LEDs. Briteq made sure that their order could be changed depending on the position of the device. There are 4 options - A, B, C, D, which correspond to the position of the device. It is worth mentioning that these options are available from both the device menu and remote via DMX!

---<<< WHAT CAN IT DO? >>>---


Really a lot and it won’t go unnoticed on the stage.
Each unit has 9 lenses that are equipped with dual CW/WW LEDs that can be individually controlled and have an adjustable color temperature (from 3000K cold white to 6000K warm white) to create amazing effects.
The layout of the device allows constructions of entire rows and walls.

One other thing worth mentioning is the illuminated front panel of the device.
The front panel houses powerful RGB LEDs, that allow extra RGB “glow effects”.
The interchangeable fronts (black, white, mirror) expand the possibilities and applications even further. Briteq is very kind to offer the extra fronts at no additional cost.
An optional set of 9 gold-colored louvers, which gives the BT-NONABEAM a special look, is available for purchase.

The engineers from Briteq also thought about suspending the equipment. A special hanging bracket and omega brackets are also included at no additional cost.
If desired you can also use your standard brackets with M10 screws.

---<<< DMX MODES >>>---

The BT-NONABEAM has three modes - 13, 29 and 45 channels.

The first of them (13 channels) allows you to control the basic functions of the device such as master dimmer (warm and cold LED and backlight panel), backlight color and control channel. In this mode it is not possible to control each LED separately, but you have a macro channel with predefined pixel effects available.

The second mode (29 channels) is my favorite. It allows you to control the LEDs separately, the color of the backlight and the control channel. In this mode there is no macro channel with predefined pixel effects available.

The third of the modes (45 channels) is almost the same as the second mode, but now you have 16 bit (instead of 8 bit) dimming on the individual LEDs, which allows more precision and smoother effects.

---<<< MENU & CONTROL OPTIONS >>>---

First I will list you all functions that can be controlled remotely from your lighting desk through DMX. They are : dimmer speed, as mentioned above the pixel order of the LEDs, fan control, dimmer curve adjustment (which is another interesting function) and a reset function.

In the device menu you have a lot of other settings including information on the temperature of the LEDs, firmware version, … .

---<<< SUMMARY >>>---

The Briteq BT-NONABEAM is a versatile device that can be used in many situations from large festival stages to theaters and television studios. Thanks to its remarkable shape and powerful light output it will always stand out on the stage and add an interesting accent to the show.
With multiple units it is possible to create interesting shapes and matrixes.





The author : Mateusz Krzuś
Magazine : www.infomusic.pl
August 10, 2018
Link to the article : http://www.infomusic.pl/test/50596,test-briteq-bt-nonabeam-to-nie-jest-kolejna-glowa-ruchoma

(Veröffentlicht am 17.08.2018)
