Old

Discontinued product

FIRMWARE UPDATER 2

Portable firmware updater for easy "on-site" updates, no special software or PC needed.
SKU: B04379
EANCODE: 5420025643795

Details

Details

  • This unit can be used to easily upgrade the firmware of compatible DMX-effects & projectors.
  • One or more DMX-effects can be upgraded simultaneously through their DMX-in/out connections.
  • This standalone programmer can be used onsite for easy firmware updates.
  • No specific PC-software needed.
  • Matrix LCD-display to easily find and select one the different firmware files stored on the micro SD-card
  • Several firmware files of different projectors can be stored
  • Mini-USB input to recharge the internal battery.
  • Output: XLR 3pin

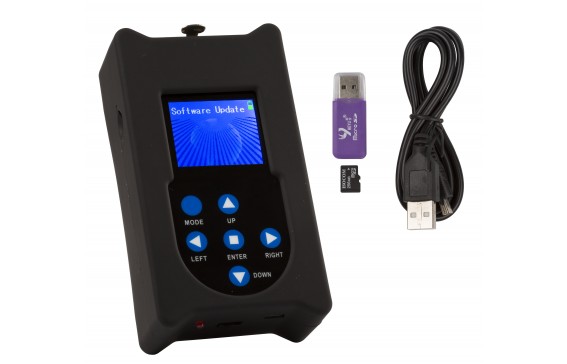

  • USB/micro SD-card adapter + mini-USB cable + micro SD-card (<2GB, FAT formatted) included.

ATTENTION:
There are different FIRMWARE UPDATER models available:
CHECK with us to know which model you need to update your projector !

Technical Specifications

Technical Specifications

General : Dimensions (cm) 12,4 x 7 x 3,8 mm
General : Weight (kg) 0.19
General : Powerinput USB 5Vdc
General : Energy Label No
General : Color black
General : Display none
General : RU No
General : IP rating indoor
Control : programmable No
Control : upgradable software Yes
Connections : input usb
Connections : output 3 pin XLR
Brand BRITEQ
EANCode 5420025643795

Manual & Downloads

Manual & Downloads

View FileWhich Firmware Updater to use    Size: (4 KB) On the website check the product page of the product you want to upgrade. The correct Firmware Updater is listed as related product.
View FileFIRMWARE UPDATER 2 Manual English    Size: (698.39 KB) FIRMWARE UPDATER 2 Manual English
View FileFIRMWARE UPDATER 2 Manual Français    Size: (1.03 MB) FIRMWARE UPDATER 2 Manual Français
View FileFIRMWARE UPDATER 2 Manual Deutsch    Size: (864.51 KB) FIRMWARE UPDATER 2 Manual Deutsch
View FileFIRMWARE UPDATER 2 Manual Español    Size: (919.84 KB) FIRMWARE UPDATER 2 Manual Español
View FileFIRMWARE UPDATER 2 Manual Nederlands    Size: (905.15 KB) FIRMWARE UPDATER 2 Manual Nederlands
View FileFIRMWARE UPDATER 2 EC declaration    Size: (662.75 KB) FIRMWARE UPDATER 2 EC declaration
