Details
Details

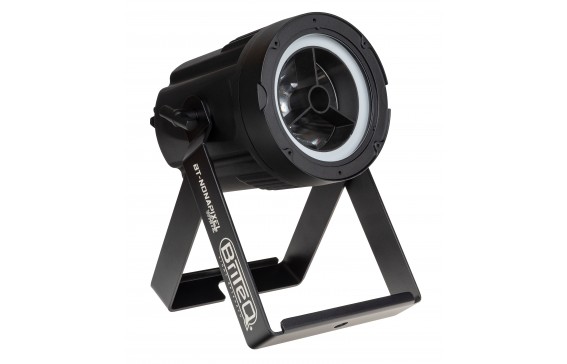

- Compact but extremely powerful very narrow white beam outdoor projector! (max 235’140lx @1m * 9’406lx @5m)
- Uses the same lens and custom 60W CW/WW LED as in our famous BT-NONABEAM!
- Tunable white: from warm white 3000K with high CRI to 6000K cold white.
- Different beam angles, thanks to included filters with magnetic installation frame:
- 4° beam: perfect alternative for the old “halogen” ACL PAR-projectors!
- 10° filter: wider but still concentrated beam
- 45° filter: for use as regular white projector
- Nice HALO effects with 30 RGB pixels
- Many pre-programmed HALO-effects + FULL pixel control.
- Different DMX-modes:
- 5CH mode: beam control without HALO-ring effects
- 12CH mode: beam control with basic pre-programmed HALO-ring effects
- 16CH mode: beam control with adjustable pre-programmed HALO-ring effects
- 96CH mode: beam control with FULL pixel control to create your own HALO-ring effects
- IP65 rating for outdoor use!
- RDM-functionality for easy remote setup: DMX addressing, channel mode, …
- Lockable OLED-display + backlit touch buttons for easy setup
- DMX-control channel (dimmer curves, dimmer speed, …)
- 3pin DMX in/outputs and IP65-Power in/outputs for easy daisy chaining.
- Optional modification kit available to modify IP 3pin XLR to 5pin
- No Fan cooling: completely silent!
- NOTE: this product has IP65 rating while used for non-permanent outdoor installation and under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | see drawings |
|---|---|
| General : Weight (kg) | 4.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 66 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | optional standard clamp |
| General : IP rating | outdoor |
| Control : Modes | DMX |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 5 |
| Control : maximum DMX channels | 95 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3000 |
| Light : max. color temperature (K) | 6000 |
| Light : CRI | 84 |
| Light : colors | White cold, White warm, RGB |
| Light : mix colors | Yes |
| Light : functions | manual frost |
| Light : min. beam angle (°) | 4 |
| Light : max. beam angle (°) | 45 |
| Light : max. refresh rate (kHz) | 3.6 |
| Connections : input | 3 pin XLR, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, PowerCon® TRUE1 or compatible |
| Brand | BRITEQ |
| EANCode | 5420025655323 |
Manual & Downloads
Manual & Downloads
 BT-NONAPIXEL WHITE - Manual EN Size: (1.93 MB) |
BT-NONAPIXEL WHITE - Manual English |
| BT-NONAPIXEL WHITE - Manual FR Size: (1.48 MB) |
BT-NONAPIXEL WHITE - Manual Français |
| BT-NONAPIXEL WHITE - EC Declaration Size: (231.11 KB) |
BT-NONAPIXEL WHITE - EC Declaration of Conformity |
 BT-NONAPIXEL WHITE - Chromateq fixture files Size: (6.95 KB) |
BT-NONAPIXEL WHITE - Chromateq fixture files |
 Fixture files - GDTF - BT-NONAPIXEL WHITE |
|
| Fixture files - CHAMSYS |
 BT-NONAPIXEL WHITE - Dimensions Size: (142.18 KB) |
BT-NONAPIXEL WHITE - Dimensions |
| BT-NONAPIXEL_WH PDF leaflet Deutsch Size: (1.37 MB) |
PDF_LEAFLET_BT-NONAPIXEL_WH_B05532_de.pdf |
| BT-NONAPIXEL_WH PDF leaflet English Size: (1.36 MB) |
PDF_LEAFLET_BT-NONAPIXEL_WH_B05532_en.pdf |
| BT-NONAPIXEL_WH PDF leaflet Français Size: (1.37 MB) |
PDF_LEAFLET_BT-NONAPIXEL_WH_B05532_fr.pdf |
| BT-NONAPIXEL_WH PDF leaflet Nederlands Size: (1.36 MB) |
PDF_LEAFLET_BT-NONAPIXEL_WH_B05532_nl.pdf |
